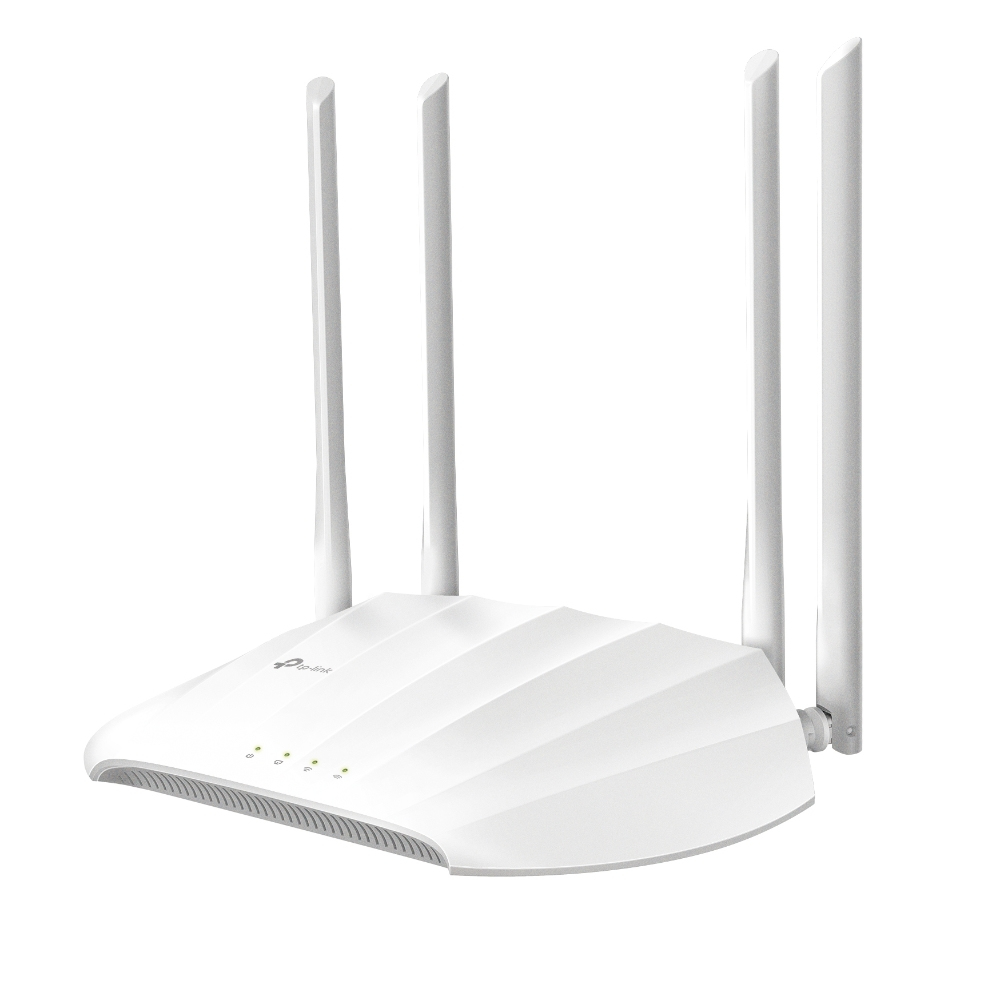

TP-Link TL-WA1201 wireless access point 867 Mbit/s White Power over Ethernet (PoE)

AC1200 Dual-Band Wi-Fi
Fast Wi-Fi 5 speed in both 5 GHz and 2.4 GHz.

Flexible Deployment
Supports Passive PoE to carry electrical power and data simultaneously.

Multiple Modes
Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.

MU-MIMO Technology
Simultaneously transfers data to multiple devices for 2x faster performance.

Boosted Coverage
Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.

Captive Portal
Offers a designed portal page for heightened security and marketing.

Lightning-Fast AC1200 Dual Band Wi-Fi
Upgrade your home or office network with the advanced 802.11ac Wave 2 AP, which offers dual-band speeds of up to AC1200—three times the performance of Wireless N. MU-MIMO technology enables the AP to serve multiple devices simultaneously without congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!

Gigabit-Class Wired Performance
The gigabit Ethernet port makes full use of gigabit-class bandwidth provided by a local ISP to ensure reliable network connections. It also provides an ultra-fast connection for wired devices such as PCs, IPTVs, and game consoles, etc.

Deploy Anywhere with Just One Cable
Power over Ethernet (PoE) allows your Ethernet cable to carry electrical power and data simultaneously, making deployment effortless and flexible. An elegant appearance and simple mounting design make it easy to attach the Access Point to any wall or desktop, blending in perfectly with most interior decoration.

Boosted Wi-Fi Coverage
Four external antennas equipped with Beamforming technology concentrate Wi-Fi signals towards your devices to extend reliable Wi-Fi to every corner of your home or office—even over long distances.

Captive Portal Marketing
Captive Portal provides a secure guest network and offers unique marketing opportunities, especially for small businesses like cafes or salons. Utilize a flexibly designed portal page—requiring customers to view an advertisement or accept a set of terms for internet access—to improve brand awareness or deliver marketing messages.

Multi-Mode 4 in 1
Multiple operation modes are supported to give you full flexibility to tailor the Access Point to fit your network's needs.

Specifications

Interface
1x 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)

Button
Power On/Off Button, WPS Button, Reset Button

Wireless Standards
IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Dimensions (W x D x H)
8.9 x 5.7 x 1.5 in
(225 x 145.5 x 37 mm)

Antenna
4 Fixed High Performance Antennas

Frequency
2.4 GHz and 5 GHz

Signal Rate
867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity
5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Wireless Modes
Access Point, Range Extender, Client, Multi-SSID

Wireless Functions
Enable/Disable Wireless Radio, WMM, Wireless Statistics, DHCP Server, Access Control

Wireless Security
WPA3, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP
Server, DHCP Client List

Quality of Service
WMM

Advanced Features
Captive Portal

Transmission Power
CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
FCC: <30dBm(2.4GHz&5GHz)

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

App management
Manage and configure device through app
Port: 20002 Protocol: UDP

Certification
CE, FCC, RoHS

Protocol Support
IPv4, IPv6

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser

Package Content
Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
