In stock (162)
TP-LINK
TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
SKU TL-SL1218MP
16 PoE, 10/100Mbps RJ45, 2 Combo Gigabit SFP Slots, 2 Fans, 100-240V AC, 50/60 Hz, 7.2 Gbps
Request a price
Quoted to you, usually same day
Overview

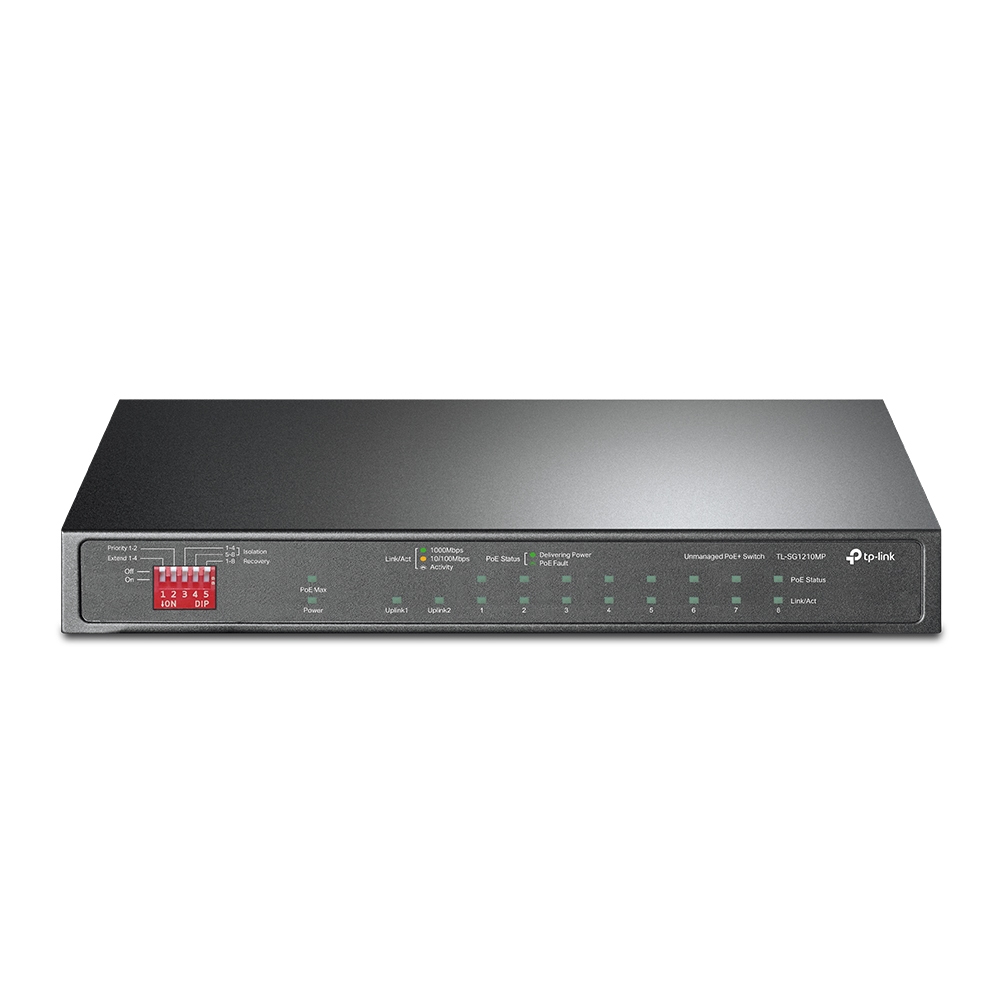

TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Packet buffer memory | 14.88 MB |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | No |
| Certification | CE, FCC |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 14.88 MB |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 141.4 W |
| Input voltage | 53.5 V |
| Input current | 2.43 A |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 123 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 482.17 BTU/h |
| Weight & dimensions | |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 1.41 kg |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 14.88 MB |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Input voltage | 53.5 V |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Why buy from us
Buying the TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black from ServersGB
Quotes usually turned around the same working day.
- Genuine, new stock with the full manufacturer's warranty — and warranty extensions quoted on request.
- Configured and tested before dispatch on request: memory, drives, firmware and imaging done for you.
- Tracked UK delivery, with everything on your order sent together when you need it.
- Trade and 30-day credit accounts, with PO ordering for schools, businesses and the public sector.
