In stock (162)
TP-LINK
TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
SKU TL-SL1218MP
16 PoE, 10/100Mbps RJ45, 2 Combo Gigabit SFP Slots, 2 Fans, 100-240V AC, 50/60 Hz, 7.2 Gbps
Request a price
Quoted to you, usually same day
Overview

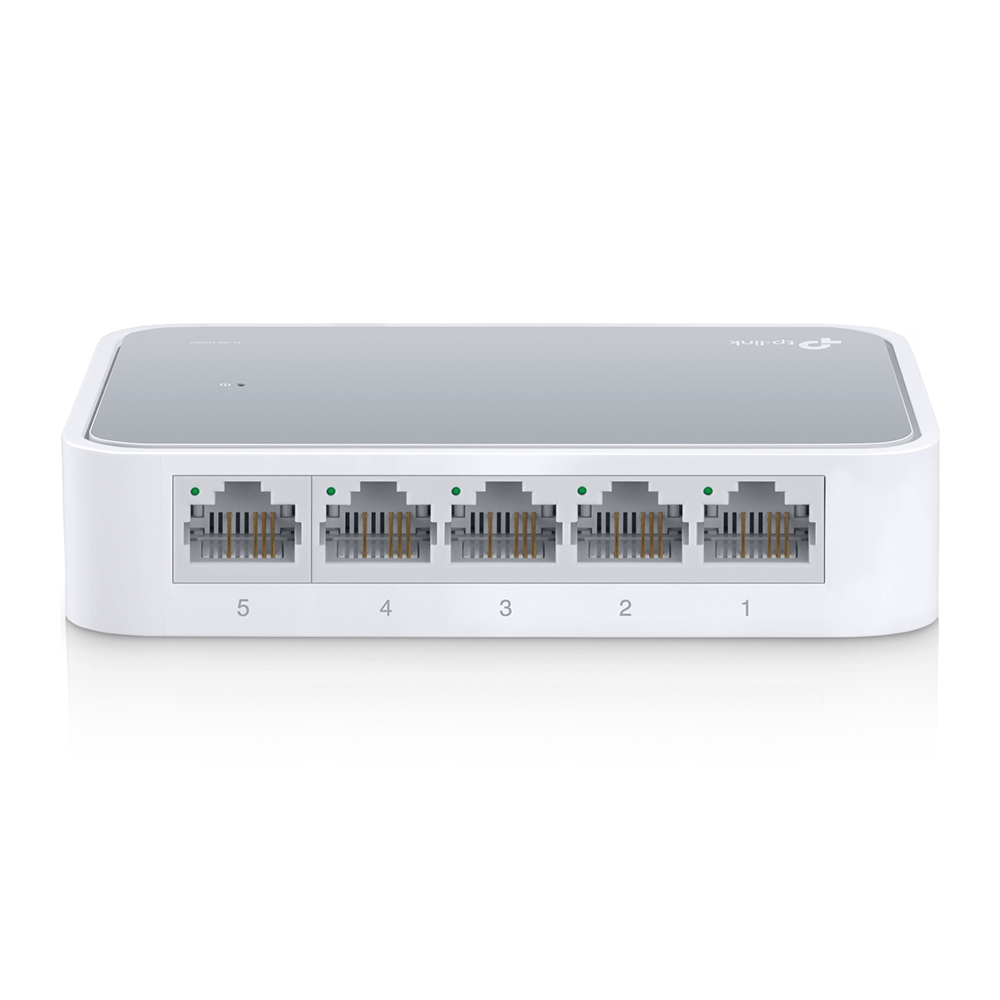

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fast Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 1000 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Design | |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | No |
| Certification | FCC, RoHs |
| Performance | |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 1.87 W |
| Power supply included | No |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 1.87 W |
| Input current | 0.6 A |
| DC input voltage | 5 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 6.38 BTU/h |
| Weight & dimensions | |
| Width | 103.5 mm |
| Depth | 70 mm |
| Height | 22 mm |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 91 mm |
| Package depth | 108 mm |
| Package height | 85 mm |
| Package weight | 200 g |
| User guide | Yes |
| Cables included | AC |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Product colour | White |
| Rack mounting | No |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certificates | |
| Certification | FCC, RoHs |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100 Mbit/s |
