TP-LINK

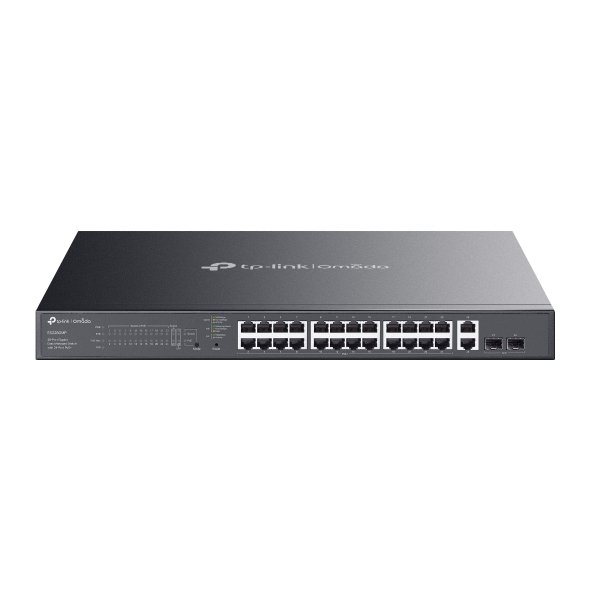

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

SKU
ES228GMP
Brand
TP-LINK
Category
Network Switches
EAN
1210002600996
Weight
5740 kg
TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Overview

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Specifications

Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Switch layerL2
Unified static configurationYes
Cloud-managedYes
Ports & interfaces
SFP module slots quantity2
Basic switching RJ-45 Ethernet ports quantity26
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity26
Copper ethernet cabling technology10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Network
Copper ethernet cabling technology10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN supportYes
Port mirroringYes
Number of VLANs32
Link aggregationYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
Fast leaveYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snoopingYes
Data transmission
Jumbo frames15000
Packet buffer memory4 MB
MAC address table8000 entries
Switching capacity56 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Forwarding rate41.66 Mpps
Number of VLANs32
Security
IGMP snoopingYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
DHCP featuresDHCP client
Multicast features
Multicast supportYes
Design
Product colourBlack
LED indicatorsYes
Housing materialMetal
Rack mountingYes
Number of fans2 fan(s)
CertificationFCC, CE, RoHS
Performance
Noise level46.2 dB
Mean time between failures (MTBF)224143 h
Flash memory64 MB
Firmware upgradeableYes
FanlessNo
Packet buffer memory4 MB
Power
Power consumption (max)454.8 W
Power supply includedYes
Surge protection voltage6 kV
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Surge protectionYes
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget384 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)-5 - 45 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation1546.15 BTU/h
Virtual LAN features
VLAN supportYes
Number of VLANs32
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Packaging content
Rack mount kitYes
Quick start guideYes
ManualYes
Cables includedAC
Technical details
Product colourBlack
Noise level46.2 dB
Mean time between failures (MTBF)224143 h
Housing materialMetal
Firmware upgradeableYes
Rack mountingYes
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory4 MB
Flash memory64 MB
Certificates
CertificationFCC, CE, RoHS
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Indication
LED indicatorsYes
Packaging data
Rack mount kitYes
Quick start guideYes
ManualYes
Cables includedAC
Other features
Ethernet LAN data rates10,100,1000 Mbit/s
