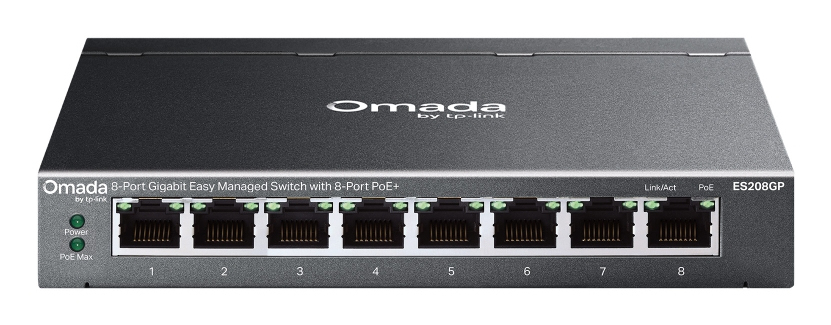

TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black

8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+), 64W, 158 × 100.7 × 25.4 mm

SKU
ES208GP
Brand
TP-LINK
Category
Network Switches
EAN
1210002609715
Weight
1880 kg
TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black

Overview

TP-Link ES208GP Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+ PORT: 8? Gigabit PoE+ Ports SPEC: 802.3at/af, 64 W PoE Power, Desktop Steel Case and Fanless FEATURE: Centralized Management by Omada SDN Controller, Omada App. Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

Specifications

Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Switch layerL2
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
VLAN supportYes
Port mirroringYes
Number of VLANs4000
Link aggregationYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
IGMP snoopingYes
Optical fiber
Transmission distance (max)0.25 km
Data transmission
Jumbo frames15000
Packet buffer memory0.5 MB
MAC address table8000 entries
Switching capacity16 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Forwarding rate11.904 Mpps
Number of VLANs4000
Security
Loop protectionYes
IGMP snoopingYes
DHCP featuresDHCP client
Multicast features
Multicast supportYes
Design
Form factorDIN rail
Product colourBlack
LED indicatorsYes
Rack mountingYes
Power
Input current1.31 A
DC input voltage53 V
Power sourceDC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget64 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN
Weight & dimensions
Width158 mm
Depth100.7 mm
Height25.4 mm
Packaging content
Quick start guideYes
Cables includedPower
Performance
Packet buffer memory0.5 MB
Auto-negotiationYes
Technical details
Form factorDIN rail
Product colourBlack
Rack mountingYes
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory0.5 MB
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Indication
LED indicatorsYes
Packaging data
Quick start guideYes
Cables includedPower
Other features
Ethernet LAN data rates10,100,1000 Mbit/s
