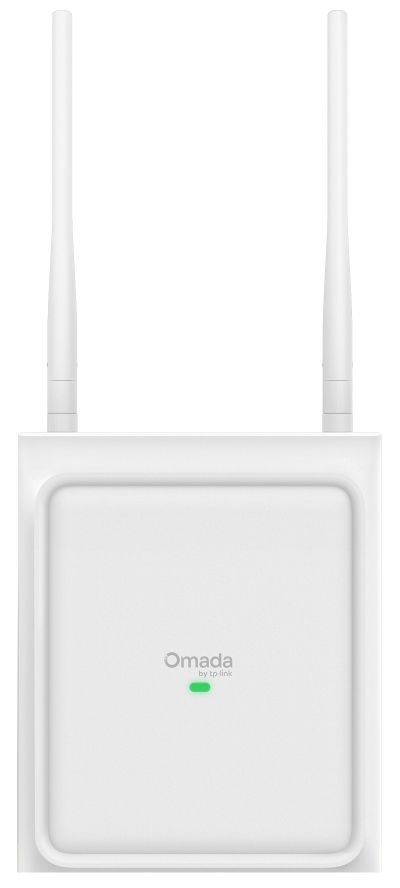

TP-Link Omada EAP725-Outdoor 5000 Mbit/s White Power over Ethernet (PoE)

Wi-Fi 7, 1x RJ-45, IP66, OFDMA, QoS, MLO, PoE+

SKU
EAP725-Outdoor
Brand
TP-LINK
Category
Wireless Access Points
EAN
1210002611008
Weight
1330 kg
TP-Link Omada EAP725-Outdoor 5000 Mbit/s White Power over Ethernet (PoE)

Overview

Versatile Antennas Deployment
Adapt to any environment effortlessly by selecting the antenna type that suits your needs. Whether you require long-distance connectivity or need to cover multiple endpoints, easily switch between external omni, internal directional, or custom antenna configurations with just a few clicks in the software.

Auto-Sensing Plug & Play—No Expertise Needed
Automatically detects the attachment and removal of antennas (included) in auto mode and seamlessly switches between the internal and external antennas with zero configuration.

Outdoor-Ready IP66 Weatherproof Design
The EAP725-Outdoor features an IP66 weatherproof rating, ensuring reliable protection against heavy rain, dust, and harsh weather conditions.

Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP725-Outdoor through automatic device identification and one‑click adoption.

Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

Specifications

Data transmission
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Maximum data transfer rate5000 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Wireless isolationYes
Wi-Fi Multimedia (WMM)/(WME)Yes
SyslogYes
Reset buttonYes
Web-based managementYes
VLAN supportYes
Rate limitingYes
Quality of Service (QoS) supportYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Maximum data transfer rate5000 Mbit/s
Band steeringYes
Network
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
Management features
VLAN supportYes
Rate limitingYes
Quality of Service (QoS) supportYes
SyslogYes
Web-based managementYes
Cloud-managedYes
Features
6 GHzNo
2.4 GHzYes
5 GHzYes
Wireless isolationYes
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Rate limitingYes
Quality of Service (QoS) supportYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Cabling technology10/100/1000/2500Base-T
Maximum data transfer rate5000 Mbit/s
BluetoothYes
Bluetooth version5.2
Band steeringYes
Maximum data transfer rate (2.4 GHz)688 Mbit/s
Maximum data transfer rate (5 GHz)4324 Mbit/s
Virtual LAN featuresManagement VLAN
Bluetooth Low Energy (BLE)Yes
BeamFormingYes
Security
Number of SSID supported16
Security algorithmsOWE, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
MAC address filteringYes
Service Set Identifier (SSID) featuresMultiple SSIDs
Schedule accessYes
Ports & interfaces
USB 2.0 ports quantity0
Ethernet LAN (RJ-45) ports1
Cabling technology10/100/1000/2500Base-T
Power
Power consumption (max)18.4 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Design
International Protection (IP) codeIP66
PlacementPole, Wall
Product colourWhite
Reset buttonYes
LED indicatorsStatus
Antenna
Antenna typeInternal & external
Antennas quantity8
Antenna gain level (max)13.2 dBi
Technical details
Reset buttonYes
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI
Certificates
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), JRF, NCC, RoHS, VCCI
Indication
LED indicatorsStatus
Weight & dimensions
Width208 mm
Depth160 mm
Weight1.33 kg
Height55 mm
Packaging data
Mounting kitYes
Packaging content
Mounting kitYes
Quantity per pack1 pc(s)
Operational conditions
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-30 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Logistics data
Quantity per pack1 pc(s)
