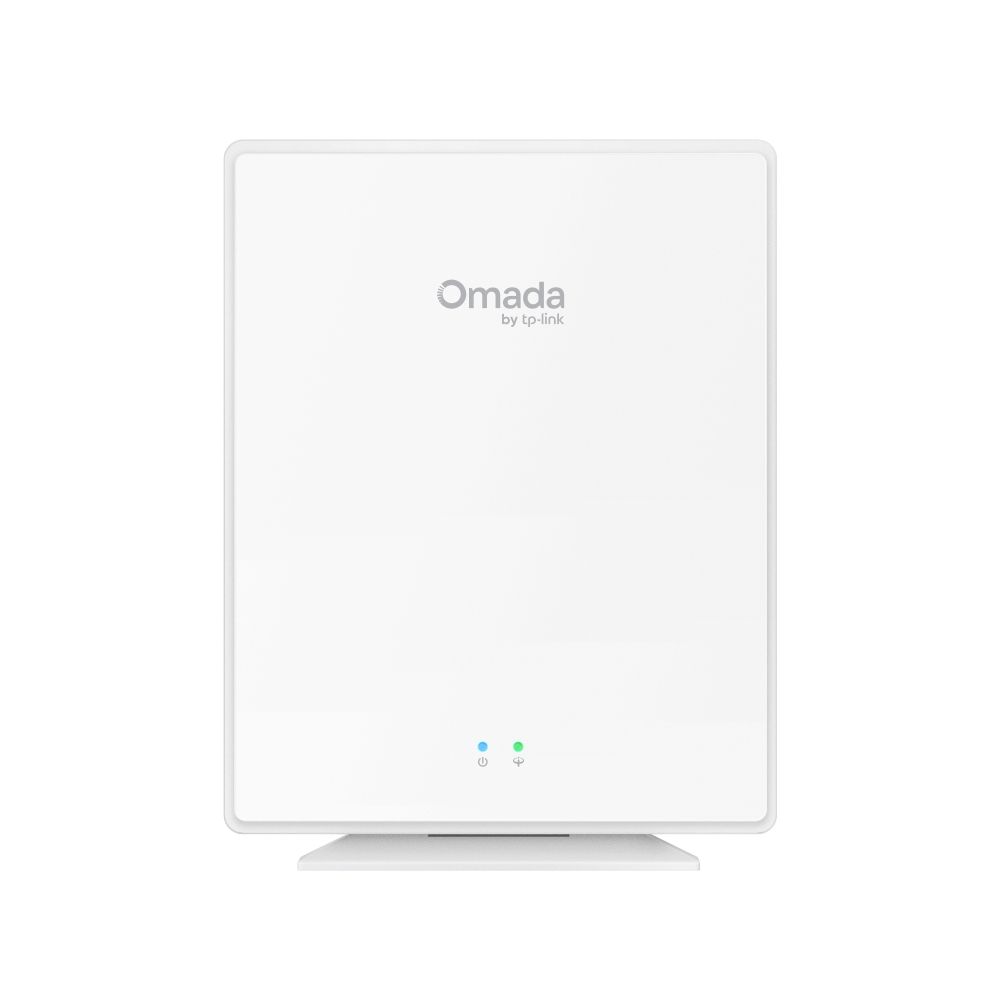

TP-Link Omada AX3000 3000 Mbit/s White Power over Ethernet (PoE)

2.4 GHz: 2× 4.5 dBi, 5 GHz: 3× 5 dBi, Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax, 511g

SKU
EAP650GP-Desktop
Brand
TP-LINK
Category
Wireless Access Points
EAN
1210002605960
Weight
511 kg
TP-Link Omada AX3000 3000 Mbit/s White Power over Ethernet (PoE)

Overview

Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.

One Fiber, Multiple Services
Connect a fiber optic cable to the EAP650GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.

△The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.

Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 3.0 Gbps.* Omada Mesh and 802.11k/v/r roaming ensure a consistently smooth and reliable connection.

Specifications

Data transmission
Maximum data transfer rate3000 Mbit/s
Performance
2.4 GHzYes
5 GHzYes
Automatic channel selectionYes
Reset buttonYes
Frequency band2.4 - 5 GHz
Web-based managementYes
Rate limitingYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax
CertificationCE, FCC, RoHS
Maximum data transfer rate3000 Mbit/s
MIMO typeMulti User MIMO
MIMOYes
Band steeringYes
Airtime Fairness (ATF)Yes
Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Wireless LAN features
Frequency band2.4 - 5 GHz
Network
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax
Management features
Rate limitingYes
Web-based managementYes
Features
6 GHzNo
2.4 GHzYes
5 GHzYes
Automatic channel selectionYes
Frequency band2.4 - 5 GHz
Rate limitingYes
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax
Maximum data transfer rate3000 Mbit/s
Transmitting power (FCC)<26 dBm (2.4 GHz); <27 dBm (5 GHz)
Transmitting power (CE)<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Automatic channel scanningYes
MIMO typeMulti User MIMO
MIMOYes
Band steeringYes
Airtime Fairness (ATF)Yes
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)2402 Mbit/s
Virtual LAN featuresSSID-based VLAN assignment
Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Security
Number of SSID supported16
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Ports & interfaces
USB 2.0 ports quantity0
Ethernet LAN (RJ-45) ports4
DC-in jackYes
Power
Power over Ethernet (PoE)Yes
Design
PlacementDesk
Product colourWhite
Reset buttonYes
LED indicatorsYes
CertificationCE, FCC, RoHS
Antenna
Antenna typeInternal
Technical details
Reset buttonYes
Certificates
CertificationCE, FCC, RoHS
Indication
LED indicatorsYes
Software
Automatic channel scanningYes
Weight & dimensions
Width175 mm
Depth140 mm
Weight511 g
Height33 mm
Packaging data
Quick start guideYes
Mounting kitYes
Packaging content
Quick start guideYes
Mounting kitYes
Quantity per pack5 pc(s)
Operational conditions
Operating relative humidity (H-H)0 - 40%
Operating temperature (T-T)10 - 90 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
System requirements
Compatible operating systemsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Logistics data
Quantity per pack5 pc(s)
