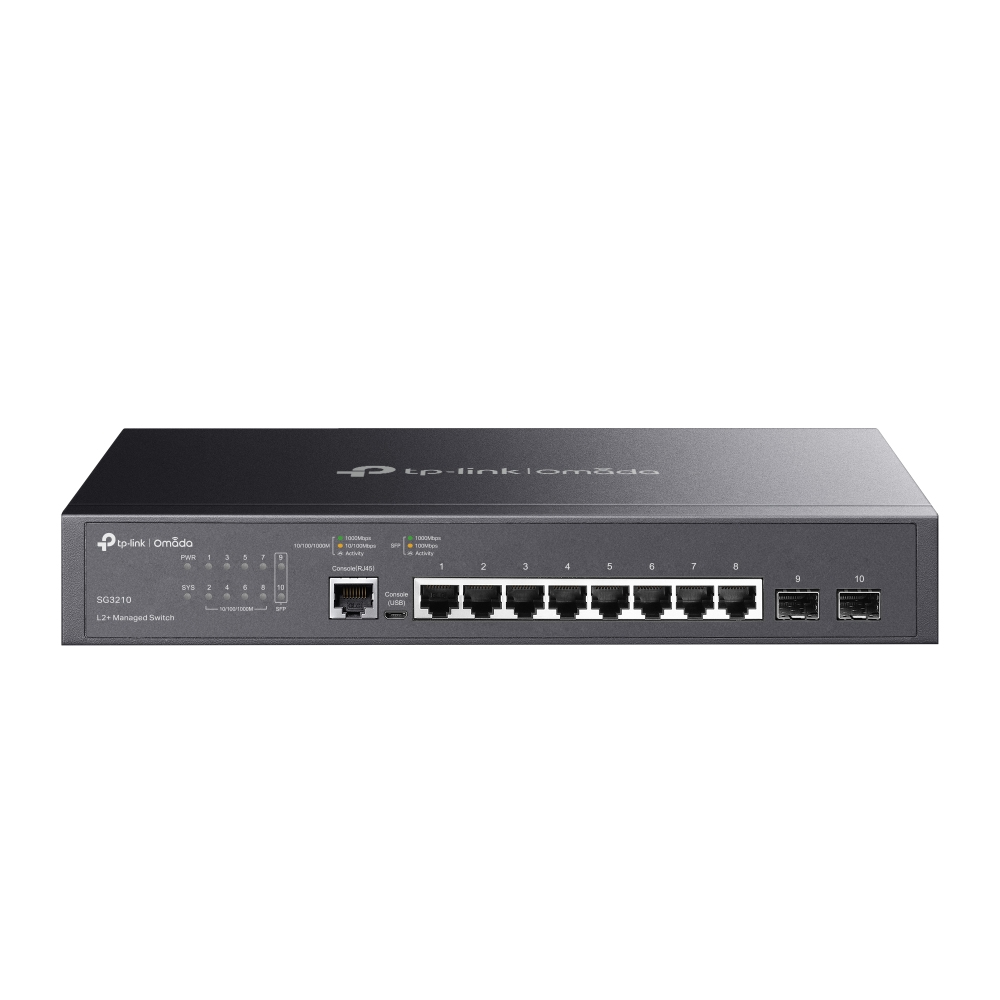

TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

8× 10/100/1000 Mbps RJ45, 2× 100/1000 Mbps SFP, RJ45/Micro-USB, 20 Gbps, 8K MAC, 9KB Jumbo, 294×180×44 mm

SKU
SG3210
Brand
TP-LINK
Category
Network Switches
EAN
6935364006396
Weight
2066 kg
TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

Overview

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
ARP inspectionYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
Multicast supportYes
MIB supportYes
Switch layerL2/L3
Configuring Location Settings (CLI)Yes
Cloud-managedYes
Ports & interfaces
SFP module slots quantity2
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Console portRJ-45/micro-USB
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Head-of-line (HOL) blockingYes
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Number of VLANs4000
Link aggregationYes
IP routingYes
Flow control supportYes
Broadcast storm controlYes
10G supportNo
Virtual LAN featuresPort-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes48
IPv4 routes48
IGMP snoopingYes
GARP VLAN Registration Protocol (GVRP)Yes
Data transmission
Jumbo frames9000
Number of IP interfaces16
Packet buffer memory4.1 MB
MAC address table8000 entries
Switching capacity20 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Static routeYes
Forwarding rate14.9 Mpps
Number of VLANs4000
Multicast Listener Discovery (MLD) snoopingYes
Security
Loop protectionYes
IP-MAC-Port bindingYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication, Port-based authentication
Static port securityYes
SSH/SSL supportYes
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
Authentication typeRADIUS
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingYes
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factor1U
Product colourBlack
LED indicatorsYes
Rack mountingYes
Performance
Minimum system requirementsMicrosoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Firmware upgradeableYes
FanlessYes
Packet buffer memory4.1 MB
Power
Power consumption (max)6.84 W
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation23.33 BTU/h
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Virtual LAN featuresPort-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width294 mm
Depth180 mm
Height44 mm
Packaging content
Rack mount kitYes
Quick start guideYes
User guideYes
ManualYes
IPv4 & IPv6 features
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Technical details
Form factor1U
Product colourBlack
Firmware upgradeableYes
Rack mountingYes
Memory
Packet buffer memory4.1 MB
Indication
LED indicatorsYes
Mobile network
GARP VLAN Registration Protocol (GVRP)Yes
System requirements
Minimum system requirementsMicrosoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Packaging data
Rack mount kitYes
Quick start guideYes
User guideYes
ManualYes
