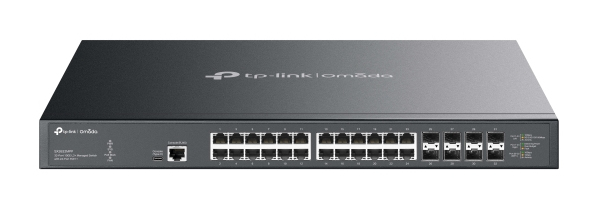

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++

24×RJ45 10Gbps PoE++, 8× 1/10G SFP+, RJ45/USB-C Console, 640 Gbps, 32K MAC, 9KB Jumbo, 440 × 330 × 44 mm

SKU
SX3832MPP
Brand
TP-LINK
Category
Network Switches
EAN
1210002604703
Weight
6960 kg
TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++

Overview

- Empowering the Real Wi-Fi 6 and Wi-Fi 7 with 10G PoE++ Ports
- Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications

Management features
ARP inspectionYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
Multicast supportYes
MIB supportRFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Switch layerL2+
Unified static configurationYes
Configuring Location Settings (CLI)Yes
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Installed SFP+ modules quantity8
Gigabit Ethernet (copper) ports quantity24
Fast Ethernet (copper) ports quantity24
Console portRJ-45/USB Type-C
2.5G Ethernet (copper) ports quantity24
10G Ethernet (copper) ports quantity24
Network
Networking standardsIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Number of VLANs4000
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportYes
Auto-negotiationYes
Ethernet Ring Protection Switching (ERPS)Yes
Address Resolution Protocol (ARP) entries (max)510
Virtual LAN featuresMVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
IPv6 routes48
IPv4 routes48
IGMP snoopingYes
Data transmission
Jumbo frames9
Packet buffer memory24 MB
MAC address table32000 entries
Switching capacity640 Gbit/s
Number of queues8
Jumbo frames supportYes
Static routeYes
Forwarding rate240 Mpps
Number of VLANs4000
Multicast Listener Discovery (MLD) snoopingYes
Security
AuthenticationGuest VLAN
Static port securityYes
Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
IGMP snoopingYes
Access Control List (ACL)Yes
Queue scheduling algorithmsStrict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)
DoS attack preventionYes
CPU defenseYes
Authentication typeAAA, RADIUS, TACACS+
DHCP featuresDHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingYes
Protocols
Device link detection protocol (DLDP)Yes
IPv4 & IPv6 featuresDual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factorDIN rail
Product colourBlack
StackableYes
LED indicatorsYes
Housing materialMetal
Rack mountingYes
Number of fans4 fan(s)
Performance
Minimum system requirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Firmware upgradeableYes
FanlessNo
Packet buffer memory24 MB
StackableYes
Auto-negotiationYes
Power
Power consumption (max)1010.2 W
Power supply includedNo
AC input voltage110 - 240 V
AC input frequency50/60 Hz
Power consumption (typical)953.7 W
Power sourceAC
Power saving mode (EEE)Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port90 W
Total Power over Ethernet (PoE) budget770 W
Power over Ethernet (PoE)Yes
Power over Ethernet 4PPoE (PoE++) ports quantity24
Other features
Packaging contentConsole Cable
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)-5 - 45 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation3444.7 BTU/h
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Virtual LAN featuresMVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
Weight & dimensions
Width440 mm
Depth330 mm
Height44 mm
Packaging content
Rack mount kitYes
Quick start guideYes
Cables includedPower
Packaging contentConsole Cable
Mounting brackets includedYes
Rubber feetYes
Screws includedYes
Packaging data
Mounting brackets includedYes
Rubber feetYes
Screws includedYes
Rack mount kitYes
Quick start guideYes
Cables includedPower
Sustainability
Sustainability organizationsAccountability
IPv4 & IPv6 features
IPv4 & IPv6 featuresDual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert
Technical details
Form factorDIN rail
Product colourBlack
StackableYes
Housing materialMetal
Firmware upgradeableYes
Rack mountingYes
Sustainability organizationsAccountability
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Memory
Packet buffer memory24 MB
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Indication
LED indicatorsYes
System requirements
Minimum system requirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
