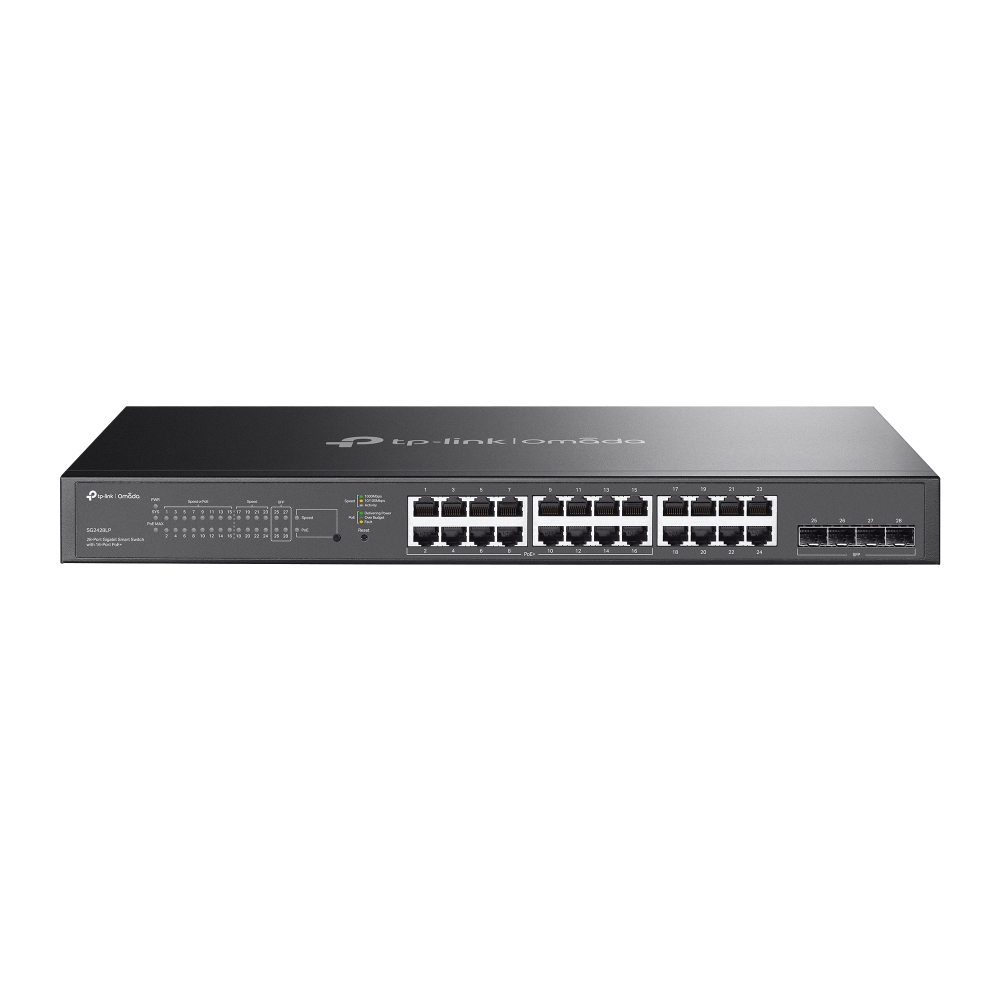

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

16× 10/100/1000 Mbps PoE+ RJ45, 8× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, 56 Gbps, 41.66 Mpps, 440 x 220 x 44 mm

SKU
SG2428LP
Brand
TP-LINK
Category
Network Switches
EAN
8885020620849
Weight
4000 kg
TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

Overview

- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Specifications

Management features
ARP inspectionYes
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Switch layerL2/L2+
Cloud-managedYes
Ports & interfaces
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.3af, IEEE 802.3at
VLAN supportYes
Spanning tree protocolYes
Number of VLANs4000
Link aggregationYes
Flow control supportYes
10G supportNo
Auto-negotiationYes
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snoopingYes
Data transmission
Jumbo frames9000
Packet buffer memory4.1 MB
MAC address table8000 entries
Switching capacity56 Gbit/s
Jumbo frames supportYes
Forwarding rate41.66 Mpps
Number of VLANs4000
Security
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
Password protectionYes
DHCP featuresDHCP relay, DHCP server
Multicast features
Multicast supportYes
Design
Product colourGrey
LED indicatorsYes
Rack mountingYes
Performance
FanlessYes
Packet buffer memory4.1 MB
Auto-negotiationYes
Power
Power consumption (max)184.7 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power sourceAC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity16
Total Power over Ethernet (PoE) budget150 W
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation628 BTU/h
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width440 mm
Depth220 mm
Height44 mm
Technical details
Product colourGrey
Rack mountingYes
Memory
Packet buffer memory4.1 MB
Indication
LED indicatorsYes
