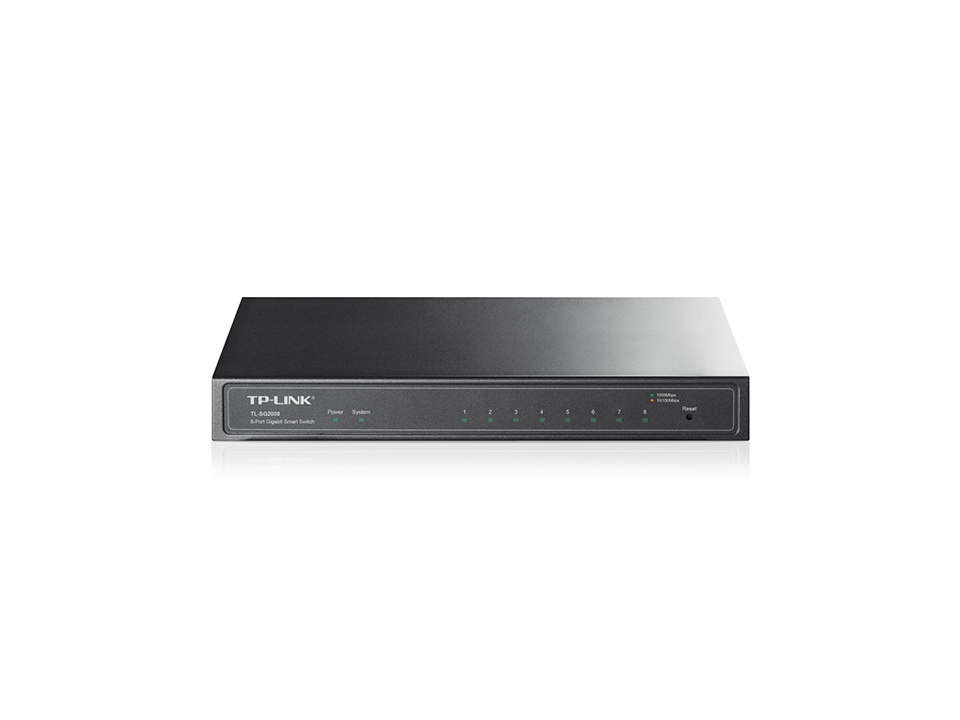

TP-Link JetStream 8-Port Gigabit Smart Switch

8 x RJ-45, 10/100/1000 Mbps, 16 Gbps, 8k MAC, 11.9 Mpps

SKU
TL-SG2008
Brand
TP-LINK
Category
Network Switches
EAN
4897098682517
TP-Link JetStream 8-Port Gigabit Smart Switch

Overview

Realize More Possibilities with Omada
JetStream 8-Port Gigabit Smart Switch

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Specifications

Management features
ARP inspectionYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
Multicast supportYes
MIB supportYes
Switch layerL2/L2+
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Gigabit Ethernet (copper) ports quantity8
Power connectorDC-in jack
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supportedCat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Number of VLANs4000
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
10G supportNo
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP snoopingYes
GARP VLAN Registration Protocol (GVRP)Yes
Data transmission
Jumbo frames9000
Number of static routes32
Number of IP interfaces16
MAC address table8000 entries
Switching capacity16 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Static routeYes
Forwarding rate11.9 Mpps
Number of VLANs4000
Security
IP-MAC-Port bindingYes
BPDU filtering/protectionYes
SSH/SSL supportYes
Security algorithmsSSH, SSH-2, SSL/TLS
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast supportYes
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
Design
Wall mountableYes
Product colourBlack
LED indicatorsYes
CertificationCE, FCC, RoHS
Performance
Internal memory256 MB
Flash memory32 MB
FanlessYes
Harmonized System (HS) code85176990
Power
Power consumption (max)6.42 W
Power supply includedYes
Input voltage12 V
Input current1 A
Power sourceDC
Power connectorDC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width209 mm
Depth126 mm
Height26 mm
Packaging content
User guideYes
Cables includedAC
Technical details
Product colourBlack
Memory
Internal memory256 MB
Flash memory32 MB
Certificates
CertificationCE, FCC, RoHS
Indication
LED indicatorsYes
Mobile network
GARP VLAN Registration Protocol (GVRP)Yes
Packaging data
User guideYes
Cables includedAC
Other features
Input voltage12 V
Logistics data
Harmonized System (HS) code85176990
