TP-LINK

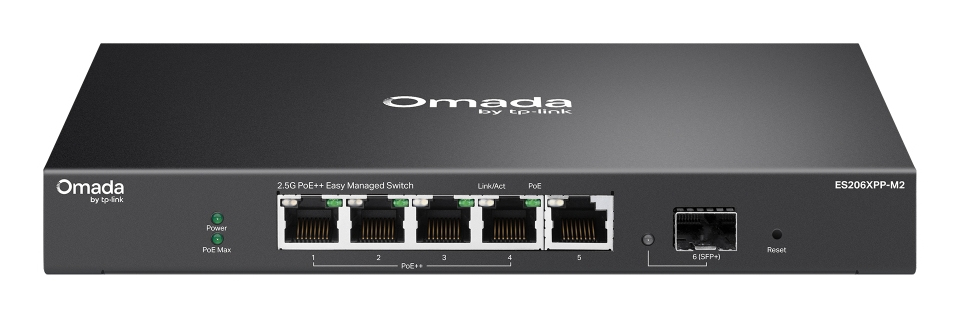

TP-Link ES206XPP-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting Black

Omada 5-Port 2.5G BASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++

SKU
ES206XPP-M2
Brand
TP-LINK
Category
Network Switches
EAN
1210002600972
TP-Link ES206XPP-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting Black

Overview

Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.

Specifications

Management features
Switch typeManaged
Quality of Service (QoS) supportYes
Switch layerL2
Ports & interfaces
SFP+ module slots quantity1
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Network
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab
VLAN supportYes
Port mirroringYes
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
10G supportNo
Virtual LAN featuresMTU VLAN, Port-based VLAN
IGMP snoopingYes
Data transmission
Jumbo frames10
Packet buffer memory0.64 MB
MAC address table16000 entries
Switching capacity45 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Forwarding rate33.48 Mpps
Security
IGMP snoopingYes
DHCP featuresDHCP client
Design
Form factorDesktop/Wall-Mounting
Product colourBlack
LED indicatorsYes
CertificationCE, FCC, RoHS
Performance
Flash memory64 MB
Firmware upgradeableYes
Packet buffer memory0.64 MB
Power
Power supply includedYes
AC input voltage100 - 240 V
Power sourceAC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port90 W
Total Power over Ethernet (PoE) budget120 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity4
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)-5 - 40 °C
Operating relative humidity (H-H)10 - 90%
Virtual LAN features
VLAN supportYes
Virtual LAN featuresMTU VLAN, Port-based VLAN
Weight & dimensions
Width209 mm
Depth126 mm
Height26 mm
Technical details
Form factorDesktop/Wall-Mounting
Product colourBlack
Firmware upgradeableYes
Memory
Packet buffer memory0.64 MB
Flash memory64 MB
Certificates
CertificationCE, FCC, RoHS
Indication
LED indicatorsYes
