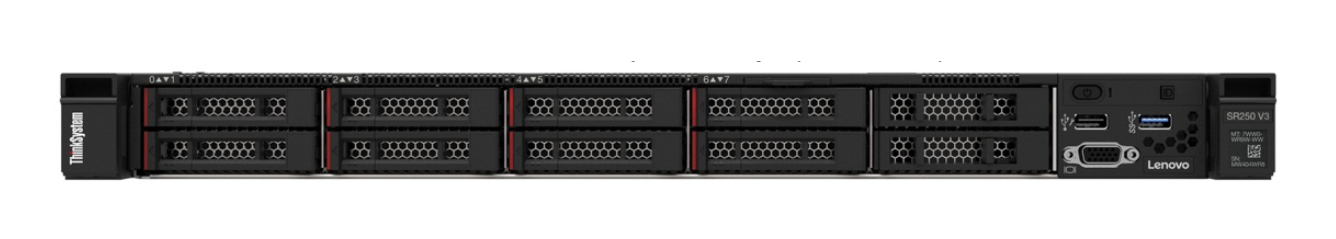

Lenovo ThinkSystem SR250 V3 server Rack (1U) Intel® Xeon® 6353P 2.7 GHz 32 GB DDR5-SDRAM 800 W

Intel Xeon 6353P (24MB Cache, 2.7GHz), 32GB DDR5-SDRAM (4800MHz), LAN (Broadcom BCM5720), 545-8i, 800W

SKU
7DCLA04XEA
Brand
Lenovo
Category
Servers
EAN
5054444757995
Weight
12780 kg
Lenovo ThinkSystem SR250 V3 server Rack (1U) Intel® Xeon® 6353P 2.7 GHz 32 GB DDR5-SDRAM 800 W

Overview

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake-E".

This product guide provides essential presales information to understand the ThinkSystem SR250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR250 V3 and consider its use in IT solutions.

Specifications

Processor
Processor cache24 MB
Processor frequency2.7 GHz
Processor boost frequency5.4 GHz
Number of processors installed1
Processor model6353P
Processor cores8
Processor manufacturerIntel
Motherboard chipsetIntel C266
Processor familyIntel® Xeon®
Performance cores8
Memory
Internal memory32 GB
Memory layout (slots x size)1 x 32 GB
Memory slots4x DIMM
Memory clock speed4800 MHz
Maximum internal memory128 GB
Internal memory typeDDR5-SDRAM
ECCYes
Storage
Supported RAID controllers545-8i
Supported storage drive interfacesSAS, Serial ATA
RAID supportYes
Internal drive bays8
Graphics
Maximum graphics card memory16 MB
On-board graphics cardYes
Network
LAN controllerBroadcom BCM5720
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Cabling technology10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
VGA (D-Sub) ports quantity1
USB 2.0 ports quantity2
Serial ports quantity1
Ethernet LAN (RJ-45) ports2
Design
Chassis typeRack (1U)
Product colourBlack, Silver
Performance
Compatible operating systemsMicrosoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Performance managementXClarity Controller Platinum
Trusted Platform Module (TPM) version2.0
Trusted Platform Module (TPM)Yes
Software
Compatible operating systemsMicrosoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
Number of redundant power supplies supported1
Redundant power supply (RPS) supportYes
Power supply input frequency50/60 Hz
Power supply800 W
Power supply input voltage100 - 240 V
Operational conditions
Storage temperature (T-T)-40 - 60 °C
Storage relative humidity (H-H)8 - 90%
Operating altitude0 - 3050 m
Management features
Performance managementXClarity Controller Platinum
Technical details
Trusted Platform Module (TPM) version2.0
Trusted Platform Module (TPM)Yes
Ethernet interface typeGigabit Ethernet
Chassis typeRack (1U)
Supported storage drives form factor (rear)2.5"
Weight & dimensions
Width434.4 mm
Height43 mm
Depth561 mm
