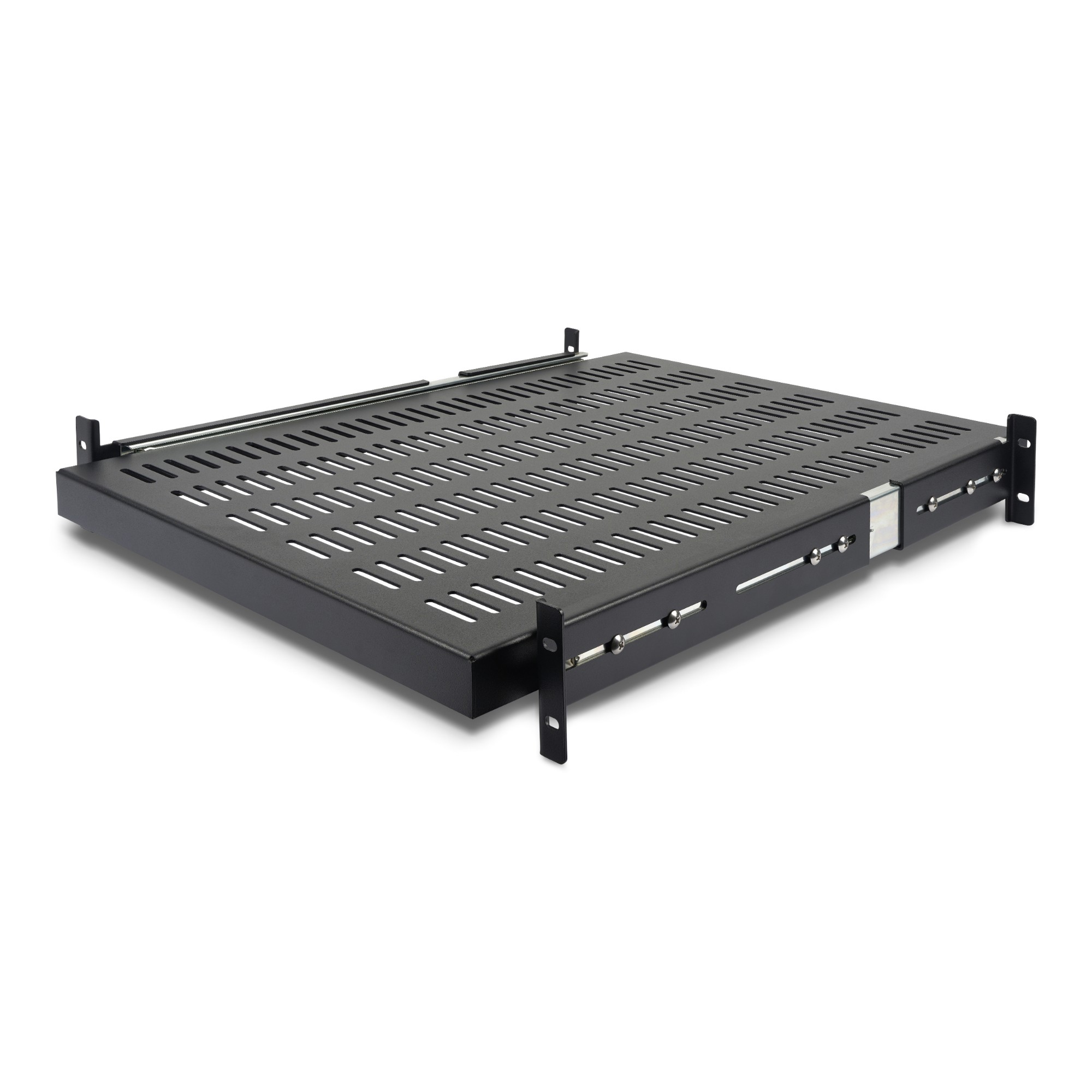

StarTech.com 2U Sliding Server Rack Mount Shelf - 20 to 30in Adjustable Mounting Depth - Vented - 50lb - Heavy Duty Universal 19” Rack Shelf for Equipment Rack - 24in Deep

StarTech 2U Sliding Server Rack Mount Shelf - 20 to 30in Adjustable Mounting Depth - Vented - 50lb - Heavy Duty Universal 19” Rack Shelf for Equipment Rack - 24in Deep (UNISLDSHF19)

SKU
UNISLDSHF19
Brand
StarTech.com
Category
Rack Accessories
EAN
0065030837859
Weight
8400 kg
StarTech.com 2U Sliding Server Rack Mount Shelf - 20 to 30in Adjustable Mounting Depth - Vented - 50lb - Heavy Duty Universal 19” Rack Shelf for Equipment Rack - 24in Deep

Overview

Increase peripheral and equipment accessibility with this vented sliding cabinet shelf

The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack.

Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.

Specifications

Features
TypeAdjustable shelf
Rack capacity2U
Maximum weight capacity22.7 kg
Product colourBlack
Compliance industry standardsEIA RS310-C
Harmonized System (HS) code85389099
Housing materialSteel
Weight & dimensions
Package width701 mm
Package height176 mm
Package depth548 mm
Package weight8.4 kg
Mounting depth (min)51 cm
Mounting depth (max)74.4 cm
Width452 mm
Weight6.4 kg
Height45 mm
Depth610 mm
Maximum weight capacity22.7 kg
Packaging data
Package width701 mm
Package height176 mm
Package depth548 mm
Package weight8.4 kg
Packaging content
Screws includedYes
Number of screws8
Screw typeM6
Number of cage nuts8
Cage nuts includedYes
Technical details
TypeAdjustable shelf
Rack capacity2U
Compliance certificatesCE, RoHS
Colour
Product colourBlack
Logistics data
Master (outer) case width718 mm
Master (outer) case length715 mm
Master (outer) case height585 mm
Products per master (outer) case4 pc(s)
Harmonized System (HS) code85389099
