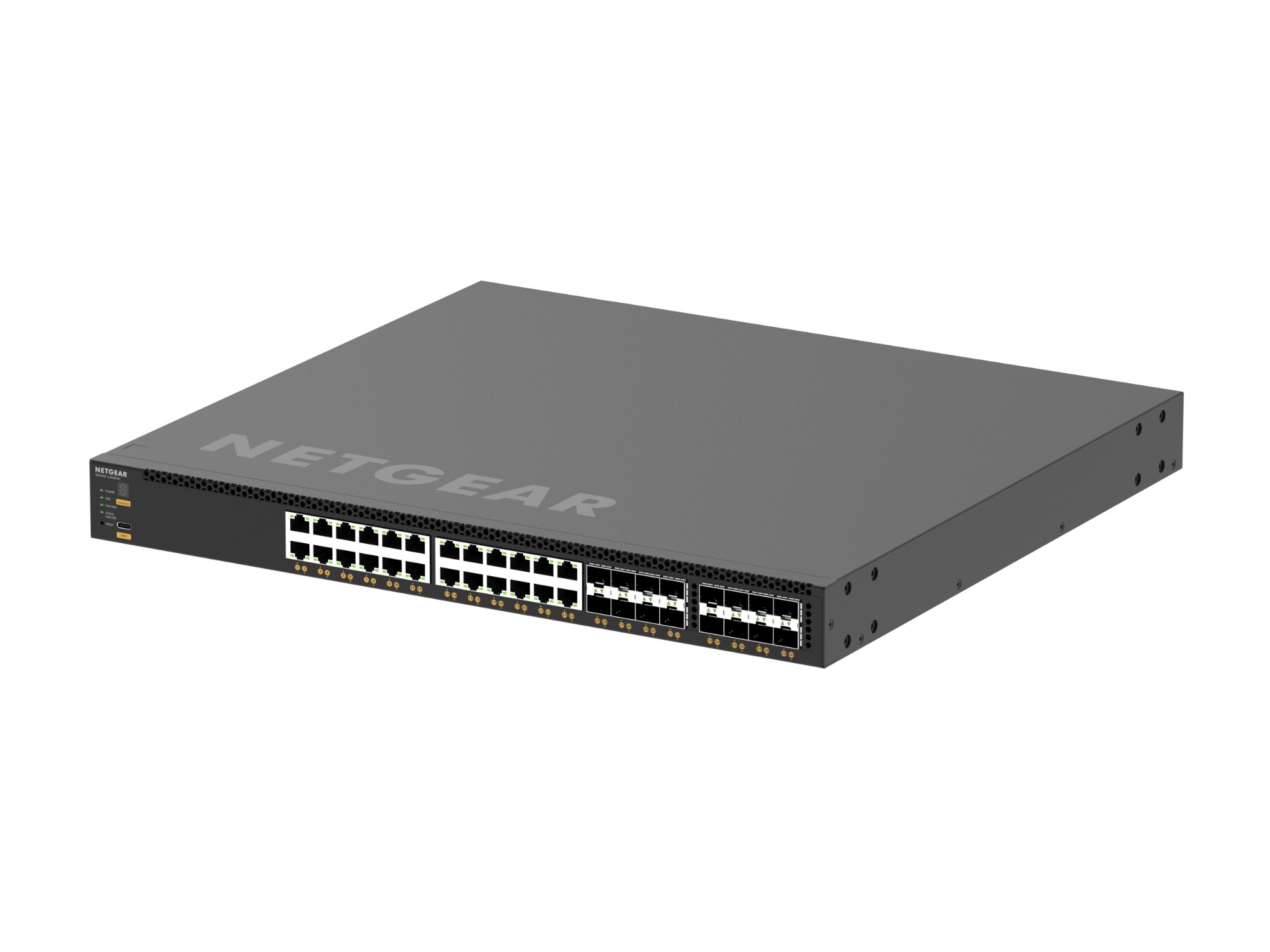

NETGEAR XSM4340V Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

24x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28, 440 x 400 x 43.2 mm, 7.24 kg

SKU
XSM4340V-100NES
Brand
Netgear
Category
Network Switches
EAN
0606449165135
Weight
7240 kg
NETGEAR XSM4340V Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black

Overview

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Specifications

Management features
ARP inspectionYes
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Switch layerL3
Ports & interfaces
SFP+ module slots quantity8
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP28 ports quantity8
10G Ethernet (copper) ports quantity24
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Number of VLANs4093
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
10G supportYes
Policy-based routingYes
6to4 tunnelYes
Virtual LAN featuresMAC address-based VLAN, Private VLAN, Voice VLAN
IPv6 routes256
IPv4 routes512
IGMP snoopingYes
GARP VLAN Registration Protocol (GVRP)Yes
IGMP proxyYes
Data transmission
Jumbo frames12000
Throughput773.76 Mpps
Latency (10 Gbps)2.7 µs
Packet buffer memory64 MB
MAC address table16000 entries
Switching capacity1040 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Number of VLANs4093
Multicast Listener Discovery (MLD) snoopingYes
Security
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN, MAC-based authentication
Static port securityYes
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
Root protectionYes
Queue scheduling algorithmsStrict Priority Queue (SPQ), Weighted random early detection (WRED)
Password protectionYes
DoS attack preventionYes
Authentication typeRADIUS, TACACS+
Access Control List (ACL) ingress511
Access Control List (ACL) egress1023
IGMP proxyYes
DHCP featuresDHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingYes
Protocols
Management protocolsSNMP V1, V2, V3
GARP VLAN Registration Protocol (GVRP)Yes
Routing protocolsOSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Design
Form factor1U
Product colourBlack
StackableYes
LED indicatorsYes
Rack mountingYes
Airflow directionFront-to-back airflow
Performance
Processor frequency1800 MHz
Memory typeDDR4-SDRAM
Internal memory4096 MB
Flash memory512 MB
sFlowYes
Built-in processorYes
Processor modelARM Cortex-A57
Packet buffer memory64 MB
StackableYes
Power
Power consumption (max)464 W
Power supply includedYes
Power consumption (typical)151.8 W
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port90 W
Total Power over Ethernet (PoE) budget1770 W
Power over Ethernet (PoE)Yes
Power over Ethernet 4PPoE (PoE++) ports quantity24
Other features
Power supply750 W
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Non-operating altitude0 - 3000 m
Virtual LAN features
VLAN supportYes
Number of VLANs4093
Virtual LAN featuresMAC address-based VLAN, Private VLAN, Voice VLAN
Weight & dimensions
Width440 mm
Depth400 mm
Height43.2 mm
Weight7.24 kg
Packaging content
Rack mount kitYes
Quick start guideYes
Cables includedAC, USB Type-C
Included power plug typesEU, UK, NA
Packaging data
Included power plug typesEU, UK, NA
Rack mount kitYes
Quick start guideYes
Cables includedAC, USB Type-C
Sustainability
Sustainability complianceYes
Technical details
Form factor1U
Product colourBlack
StackableYes
Processor frequency1800 MHz
Rack mountingYes
Built-in processorYes
Sustainability complianceYes
Compliance certificatesBSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Memory
Packet buffer memory64 MB
Memory typeDDR4-SDRAM
Internal memory4096 MB
Flash memory512 MB
Certificates
Compliance certificatesBSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Indication
LED indicatorsYes
Mobile network
GARP VLAN Registration Protocol (GVRP)Yes
