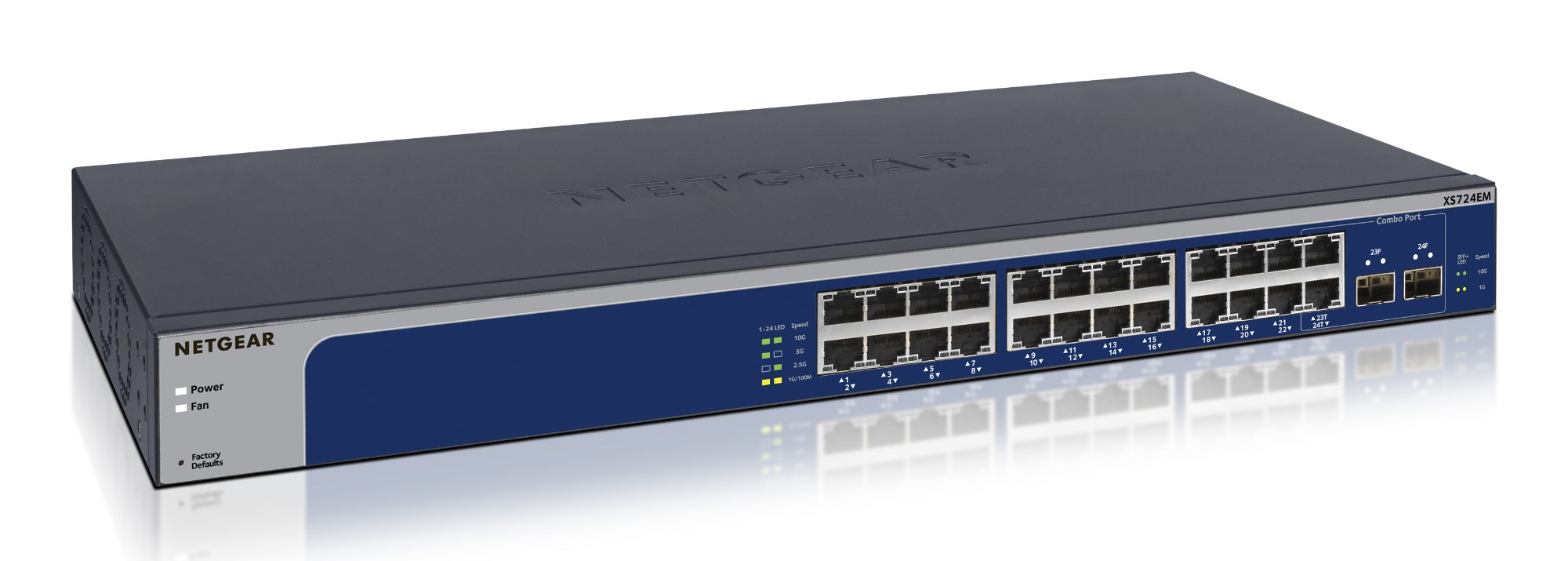

NETGEAR XS724EM Managed L2 10G Ethernet (100/1000/10000) 1U Blue, Grey

24x 10-Gig/Multi-Gig Copper, 2x 10G SFP+, Active Fan, Metal, Rackmount/Desktop

SKU
XS724EM-200EUS
Brand
Netgear
Category
Network Switches
EAN
0606449174458
Weight
3720 kg
NETGEAR XS724EM Managed L2 10G Ethernet (100/1000/10000) 1U Blue, Grey

Overview

Unlock your Network Potential with 10-Gigabit/Multi-Gigabit 5-Speed Networking Switches
Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.

With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.

Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle

Specifications

Management features
Switch typeManaged
Quality of Service (QoS) supportYes
Switch layerL2
Ports & interfaces
SFP+ module slots quantity2
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Installed SFP modules quantity0
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN supportYes
Broadcast storm controlYes
10G supportYes
Virtual LAN featuresPort-based VLAN
IGMP snoopingYes
Data transmission
Jumbo frames9000
Packet buffer memory3 MB
MAC address table32000 entries
Switching capacity480 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Security
MAC address filteringYes
IGMP snoopingYes
DHCP featuresDHCP client
Design
Form factor1U
Product colourBlue, Grey
LED indicatorsYes
Rack mountingYes
Number of fans3 fan(s)
Certification47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1
Performance
Mean time between failures (MTBF)830493 h
Packet buffer memory3 MB
Harmonized System (HS) code85176990
Power
AC input voltage100 - 240 V
Input current2 A
Power sourceAC
Power connectorDC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 90%
Heat dissipation513.88 BTU/h
Virtual LAN features
VLAN supportYes
Virtual LAN featuresPort-based VLAN
Weight & dimensions
Width440 mm
Depth204 mm
Height43 mm
Weight3.72 kg
Sustainability
Sustainability certificatesENERGY STAR
Technical details
Form factor1U
Product colourBlue, Grey
Mean time between failures (MTBF)830493 h
Rack mountingYes
Sustainability certificatesENERGY STAR
Memory
Packet buffer memory3 MB
Certificates
Certification47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1
Indication
LED indicatorsYes
Logistics data
Harmonized System (HS) code85176990
