ServersGB

Netgear

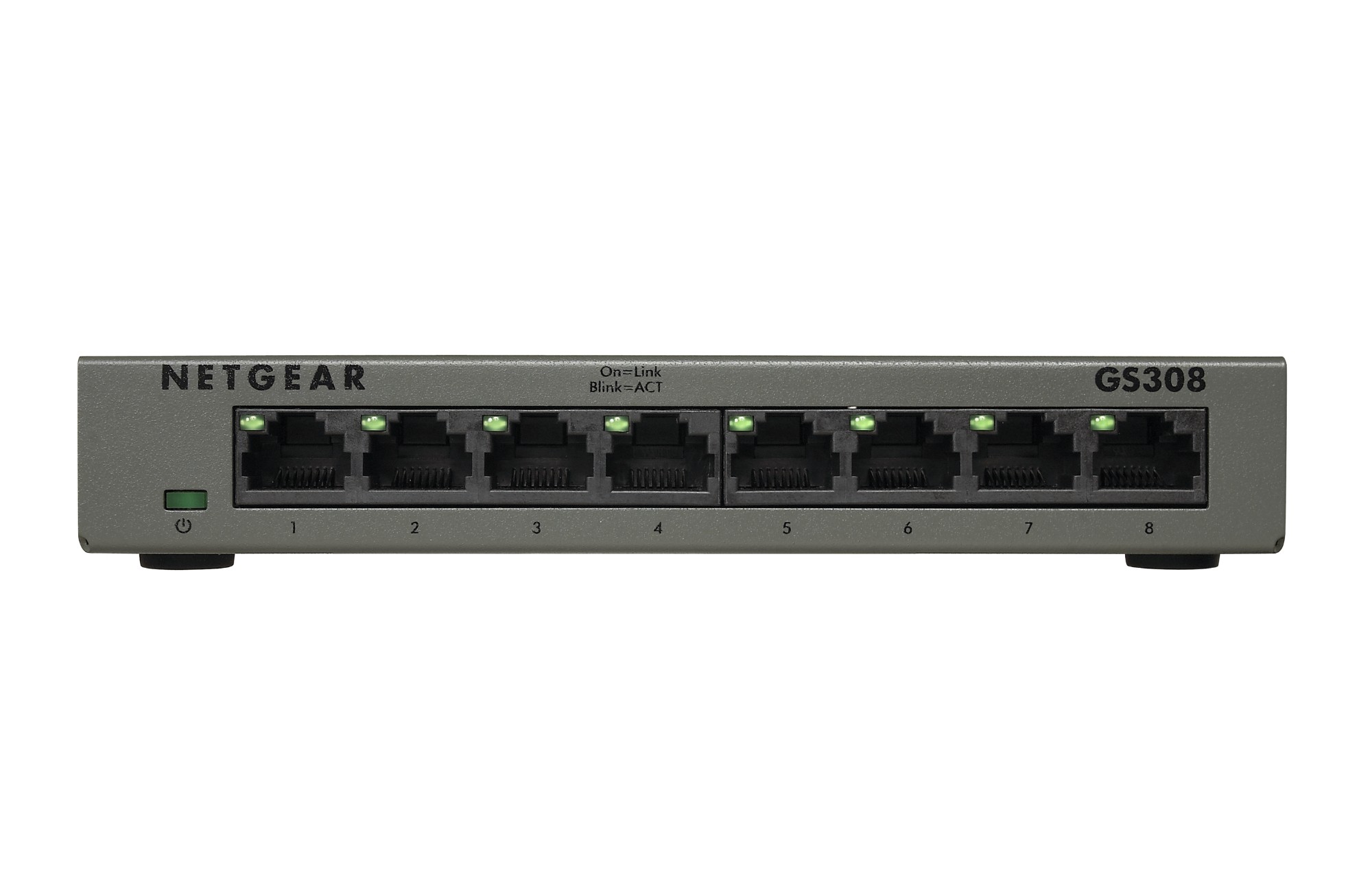

NETGEAR SOHO Unmanaged Gigabit Ethernet (10/100/1000) Black

8x 10/100/1000, RJ-45, DC 12 V, 0.5 A, 158 x 101 x 29 mm, 390 g

SKU
GS308-300UKS
Brand
Netgear
Category
Network Switches
EAN
0606449140156
Weight
648 kg
NETGEAR SOHO Unmanaged Gigabit Ethernet (10/100/1000) Black

Overview

SOHO Ethernet Switch Series Expanding Wired Connectivity for SOHO Networks The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Specifications

Performance
Packet buffer memory0.128 MB
StackableNo
Mean time between failures (MTBF)3711898 h
Harmonized System (HS) code85176990
FanlessYes
Technical details
Product colourBlack
StackableNo
Mean time between failures (MTBF)3711898 h
Housing materialMetal
Rack mountingNo
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Network
Networking standardsIEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Auto MDI/MDI-XYes
10G supportYes
Data transmission
Packet forwarding rate (1 Gbps)1448000 pps
Jumbo frames9216
Latency (1 Gbps)2.6 µs
Packet buffer memory0.128 MB
MAC address table2000 entries
Switching capacity16 Gbit/s
Jumbo frames supportYes
Security
Queue scheduling algorithmsWeighted Round Robin (WRR)
Certificates
CertificationCE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC, CB, CE LVD
Memory
Packet buffer memory0.128 MB
Design
Wall mountableYes
Product colourBlack
StackableNo
LED indicatorsActivity, Link, Power
Housing materialMetal
CertificationCE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC, CB, CE LVD
Rack mountingNo
Indication
LED indicatorsActivity, Link, Power
Power
Power consumption (max)3.04 W
Input current0.5 A
DC input voltage12 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Heat dissipation10.4 BTU/h
Weight & dimensions
Width158 mm
Depth101 mm
Height29 mm
Weight390 g
Packaging data
Package width192 mm
Package depth228 mm
Package height60 mm
Package weight648 g
Logistics data
Harmonized System (HS) code85176990
