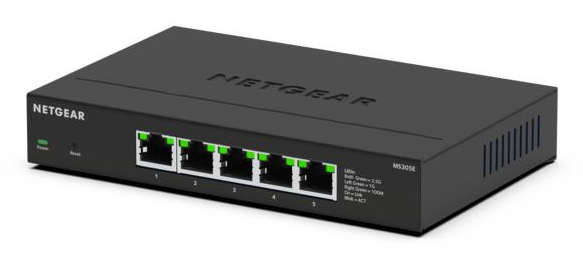

NETGEAR MS305E Unmanaged 2.5G Ethernet (100/1000/2500) Black

5-Port, 2.5 G, 5.6 W, 158 x 101 x 27 mm, 450 g

SKU
MS305E-100EUS
Brand
Netgear
Category
Network Switches
EAN
0606449170634
Weight
450 kg
NETGEAR MS305E Unmanaged 2.5G Ethernet (100/1000/2500) Black

Overview

NETGEAR 5-port 2.5G Multi-Gigabit Ethernet Plus Switch

MULTI-GIGABIT ETHERNET
5 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each
NON-BLOCKING SWITCHING
25Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices

AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device

FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Specifications

Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Network
Cable length detectionYes
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Head-of-line (HOL) blockingYes
Ethernet LAN data rates100,1000,2500 Mbit/s
Auto MDI/MDI-XYes
10G supportNo
Half duplexYes
Data transmission
Jumbo frames12288
Latency (1 Gbps)4.9 µs
Packet buffer memory1 MB
MAC address table16000 entries
Switching capacity40 Gbit/s
Jumbo frames supportYes
Forwarding rate3.72 Mpps
Design
Wall mountableYes
Product colourBlack
StackableNo
LED indicatorsYes
Housing materialMetal
Rack mountingNo
Number of fans0 fan(s)
Performance
Noise level0 dB
Mean time between failures (MTBF)4273003 h
FanlessYes
Packet buffer memory1 MB
StackableNo
Power
Power consumption (max)5.6 W
Power supply includedYes
Input voltage12 V
Input current1 A
DC input voltage12 V
Power sourceDC
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Other features
Warranty period5 year(s)
Input voltage12 V
Ethernet LAN data rates100,1000,2500 Mbit/s
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Weight & dimensions
Width158 mm
Depth101 mm
Height27 mm
Weight450 g
Technical details
Product colourBlack
StackableNo
Noise level0 dB
Mean time between failures (MTBF)4273003 h
Housing materialMetal
Rack mountingNo
Warranty period5 year(s)
Compliance certificatesCCC, Low Voltage Directive (LVD)
Memory
Packet buffer memory1 MB
Certificates
Compliance certificatesCCC, Low Voltage Directive (LVD)
Indication
LED indicatorsYes
