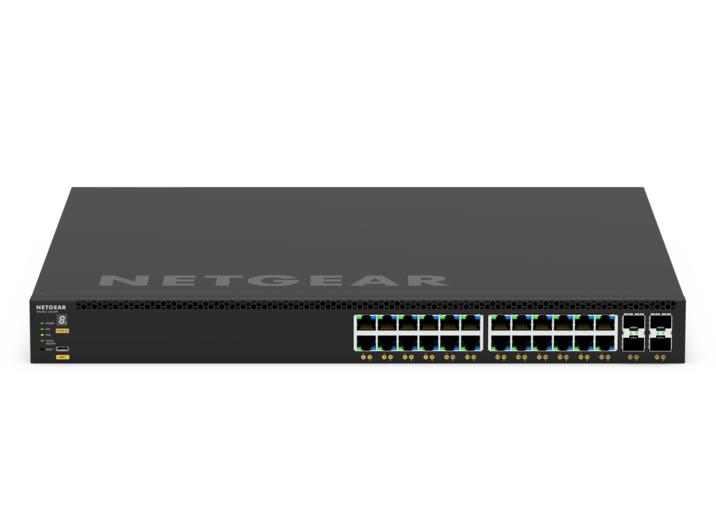

NETGEAR GSM4328 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

24 x 1G PoE+ (720W Max), 4 x 10G SFP+, 1U, 440 x 400 x 43.2 mm

SKU
GSM4328-100NES
Brand
Netgear
Category
Network Switches
EAN
0606449161922
Weight
6410 kg
NETGEAR GSM4328 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Overview

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Specifications

Management features
Traffic shapingYes
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity4
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
VLAN supportYes
Number of VLANs4093
10G supportYes
Data transmission
Throughput95.23 Mpps
Packet buffer memory16 MB
MAC address table16000 entries
Switching capacity128 Gbit/s
Number of VLANs4093
Security
DHCP featuresDHCP server, DHCP snooping, DHCPv6 snooping
Design
Form factor1U
Product colourBlack
StackableYes
Rack mountingYes
Performance
Noise level52 dB
Packet buffer memory16 MB
StackableYes
Power
Power supply includedYes
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget648 W
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 45 °C
Virtual LAN features
VLAN supportYes
Number of VLANs4093
Weight & dimensions
Width440 mm
Depth400 mm
Height43.2 mm
Weight6.41 kg
Technical details
Form factor1U
Product colourBlack
StackableYes
Noise level52 dB
Rack mountingYes
Memory
Packet buffer memory16 MB
