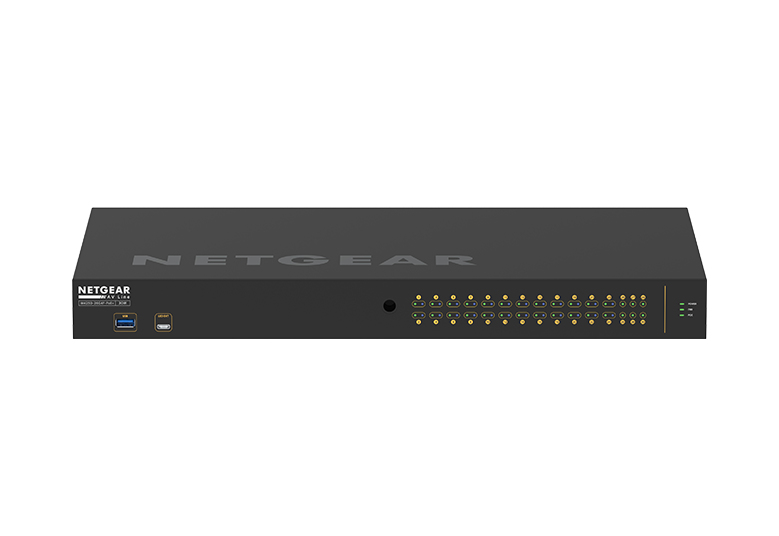

NETGEAR GSM4230P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

1GbE, PoE+, 300W, IGMP, AVB, 12kb Jumbo

SKU
GSM4230P-100EUS
Brand
Netgear
Category
Network Switches
EAN
0606449151671
Weight
4300 kg
NETGEAR GSM4230P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Overview

Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Multi-switch audio or single-switch video deployments
24x1G PoE+ with 300W PoE budget with 2x1G additional ports and 4xSFP 1G fiber uplinks

Layer 2/Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models

Control methods abound
Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series

Standard network features
Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Specifications

Management features
Switch typeManaged
Switch layerL2/L3
Ports & interfaces
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports quantity30
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Data transmission
Jumbo frames12000
Jumbo frames supportYes
Design
Form factor1U
Product colourBlack
Rack mountingYes
Performance
Noise level34 dB
FanlessYes
Harmonized System (HS) code85176990
Power
Power supply includedYes
Power consumption (typical)401 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget300 W
Power over Ethernet (PoE)Yes
Weight & dimensions
Width440 mm
Depth257 mm
Height43.2 mm
Weight4.3 kg
Packaging content
User guideYes
Cables includedAC, LAN (RJ-45), USB Type-C
Packaging data
Rack railsYes
User guideYes
Cables includedAC, LAN (RJ-45), USB Type-C
Technical details
Form factor1U
Product colourBlack
Noise level34 dB
Rack mountingYes
Logistics data
Harmonized System (HS) code85176990
