ServersGB

Netgear

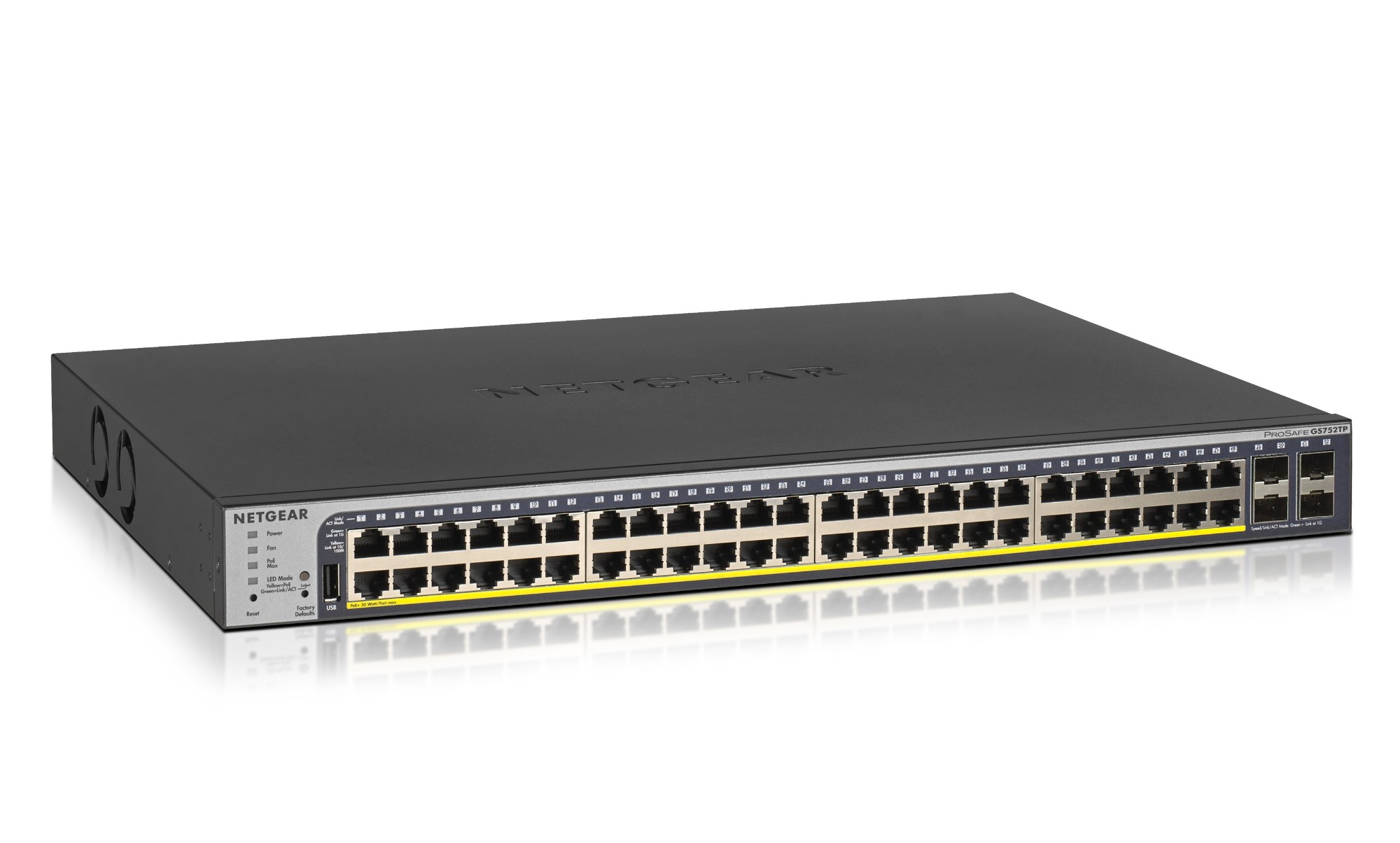

NETGEAR GS752TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

48-Port Gigabit PoE+(380W) Smart Managed Pro Switch with 4 SFP Ports

SKU
GS752TP-300EUS
Brand
Netgear
Category
Network Switches
EAN
0606449162462
Weight
5003.33 kg
NETGEAR GS752TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Overview

All ports PoE+ with up to 760W PoE budget – Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA

Specifications

Management features
Switch typeManaged
Web-based managementYes
Multicast supportYes
Switch layerL2/L3/L4
Ports & interfaces
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
USB 2.0 ports quantity1
Network
VLAN supportYes
Number of VLANs256
10G supportNo
Data transmission
Latency (1 Gbps)3.35 µs
Packet buffer memory1.5 MB
MAC address table16000 entries
Switching capacity104 Gbit/s
Static routeYes
Multicast MAC address table512 entries
Number of VLANs256
Security
Access Control List (ACL) rules100
Access Control List (ACL)Yes
Multicast features
Multicast MAC address table512 entries
Multicast supportYes
Design
Form factor1U
Product colourBlack
LED indicatorsYes
Rack mountingYes
Number of fans2 fan(s)
Performance
Processor frequency700 MHz
Internal memory128 MB
Flash memory32 MB
Built-in processorYes
Packet buffer memory1.5 MB
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity48
Total Power over Ethernet (PoE) budget380 W
Power over Ethernet (PoE)Yes
Virtual LAN features
VLAN supportYes
Number of VLANs256
Technical details
Form factor1U
Product colourBlack
Processor frequency700 MHz
Rack mountingYes
Built-in processorYes
Memory
Packet buffer memory1.5 MB
Internal memory128 MB
Flash memory32 MB
Indication
LED indicatorsYes
