Netgear

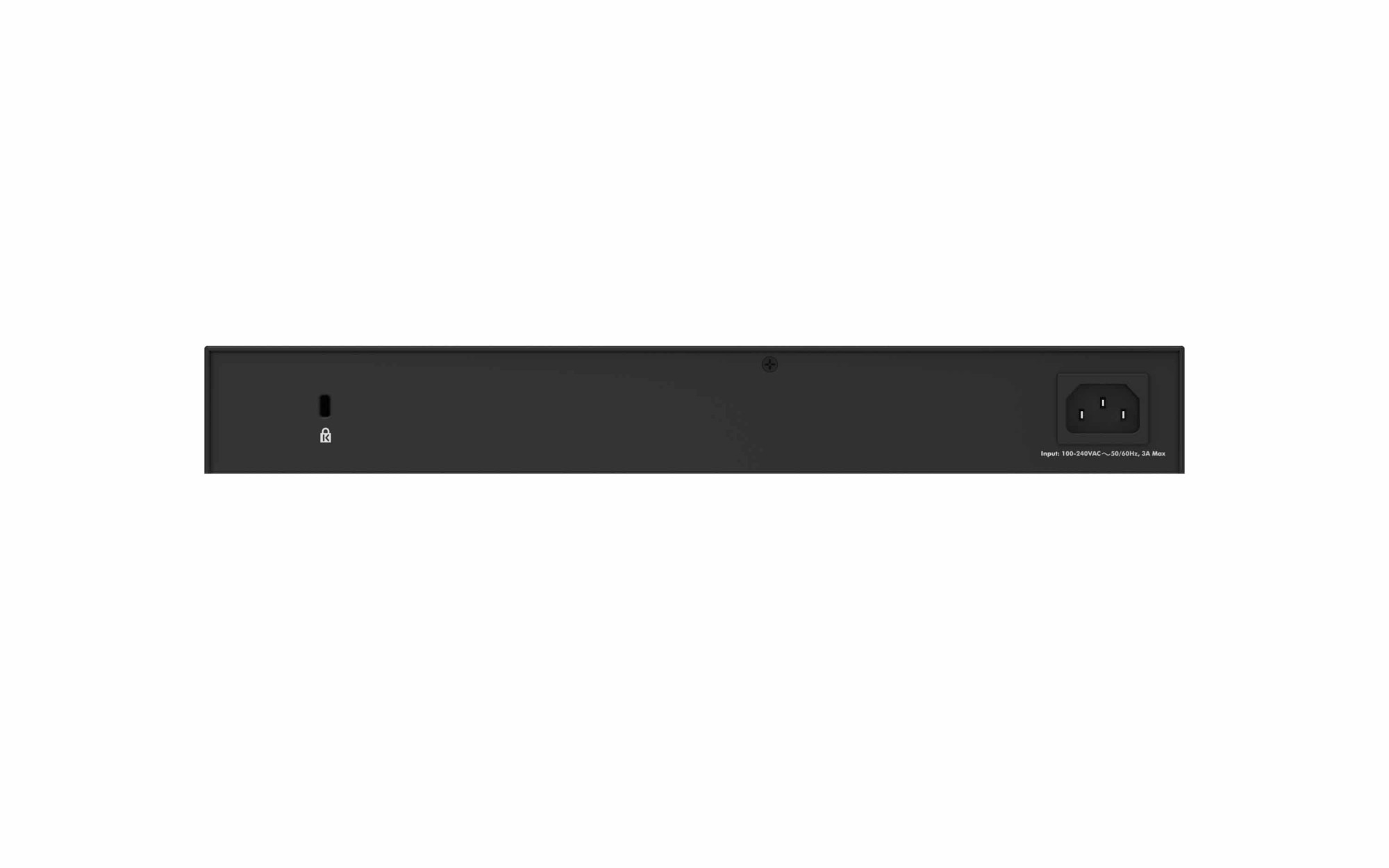

NETGEAR GS324P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

GS324P, 24x 1G RJ-45, 48 Gbps, 192 KB, QoS, PoE, 100-240V AC, 330x206x43 mm, Europe and United Kingdom

SKU
GS324P-100EUS
Brand
Netgear
Category
Network Switches
EAN
0606449144802
Weight
2440 kg
NETGEAR GS324P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Overview

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Specifications

Performance
Packet buffer memory0.192 MB
Auto-negotiationYes
Mean time between failures (MTBF)1193574 h
Harmonized System (HS) code85176990
Technical details
Form factor1U
Product colourBlack
Mean time between failures (MTBF)1193574 h
Housing materialMetal
Rack mountingYes
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.1p, IEEE 802.3at
Full duplexYes
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Data transmission
Packet forwarding rate (1 Gbps)1448000 pps
Jumbo frames10000
Latency (1 Gbps)4 µs
Packet buffer memory0.192 MB
MAC address table8000 entries
Switching capacity48 Gbit/s
Jumbo frames supportYes
Security
Queue scheduling algorithmsWeighted Round Robin (WRR)
Certificates
Electromagnetic compatibilityCE, FCC 15 A, IC A, RCM, VCCI, KC
CertificationCB, CE LVD, UL
Memory
Packet buffer memory0.192 MB
Design
Form factor1U
Product colourBlack
LED indicatorsActivity, Link, PoE, Power, Speed
Housing materialMetal
Electromagnetic compatibilityCE, FCC 15 A, IC A, RCM, VCCI, KC
CertificationCB, CE LVD, UL
Rack mountingYes
Number of fans1 fan(s)
Indication
LED indicatorsActivity, Link, PoE, Power, Speed
Power
Power consumption (max)210 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current3 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity16
Total Power over Ethernet (PoE) budget190 W
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 3000 m
Heat dissipation718.2 BTU/h
Weight & dimensions
Width330 mm
Depth206 mm
Height43 mm
Weight2.44 kg
Logistics data
Harmonized System (HS) code85176990
