In stock (71)
Netgear
NETGEAR 28-Port PoE Gigabit/10G Stackable Smart Switch (GS728TXP)
SKU GS728TXP-300EUS
24 GE ports, 4 10G ports, PoE+, 440 x 257 x 43.2 mm, 3.8 kg
Request a price
Quoted to you, usually same day
Overview
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
Specifications
| Performance | |
|---|---|
| Packet buffer memory | 1 MB |
| Mean time between failures (MTBF) | 2362192 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Power consumption (max) | 127.9 W |
| Input current | 2.4 A |
| DC input voltage | 54 V |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 2362192 h |
| Housing material | Metal |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Jumbo frames | 9216 |
| Latency (1 Gbps) | 3.7 µs |
| Packet buffer memory | 1 MB |
| MAC address table | 4000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Memory | |
| Packet buffer memory | 1 MB |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 437.42 BTU/h |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 880 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Why buy from us

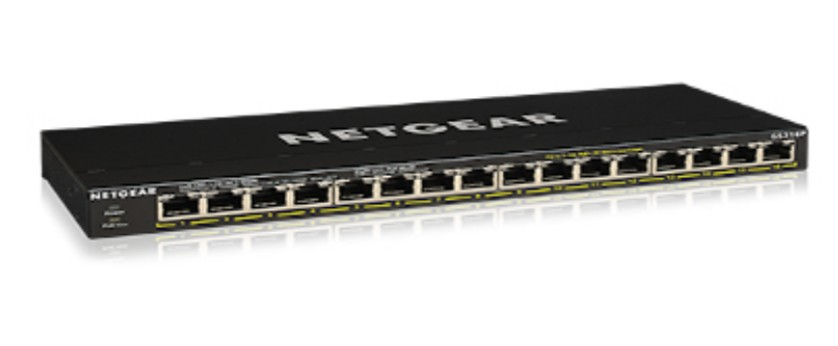

Buying the NETGEAR GS316P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black from ServersGB
