In stock (71)
Netgear
NETGEAR 28-Port PoE Gigabit/10G Stackable Smart Switch (GS728TXP)
SKU GS728TXP-300EUS
24 GE ports, 4 10G ports, PoE+, 440 x 257 x 43.2 mm, 3.8 kg
Request a price
Quoted to you, usually same day
Overview
16PT GE Plus Switch W/ POE+

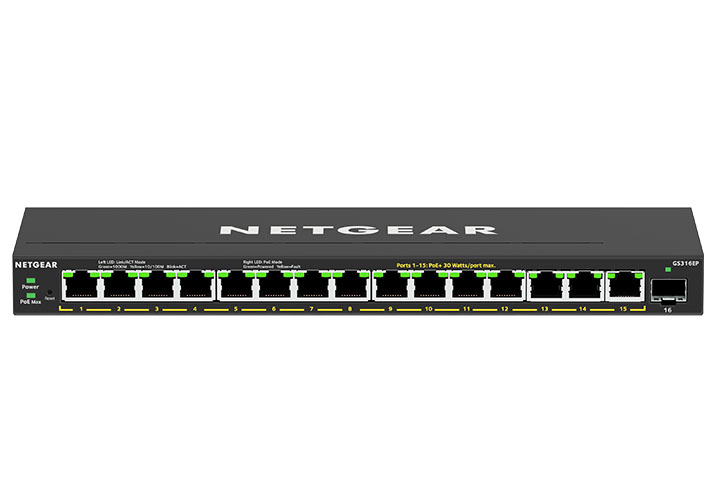

16-Port PoE+ Gigabit Ethernet Plus Switch (180W) with 1 SFP Port
The NETGEAR 16-Port PoE+ Gigabit Ethernet Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones IP cameras and more.
Features
Gigabit Ethernet
16 ports provide up to 1000 Mbps of dedicated non-blocking bandwidth each
PoE+ Support
15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire
Advanced PoE Controls
Manage PoE prioritization PoE power limit per port PoE scheduling and more for simple control over all PoE-powered devices
Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments
Versatile Mounting Options
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
| Features | |
|---|---|
| Management level | Smart managed |
| POE level | POE+ (30w) |
| Port count | 11-20 |
| Port speed | 1g |
| SFP/SFP+ ports? | No |
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 64 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | No |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 64 |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Data transmission | |
| Number of multicast groups filtered | 128 |
| Number of VLANs | 64 |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.192 MB |
| MAC address table | 4096 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 0.192 MB |
| Mean time between failures (MTBF) | 784742 h |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| Power | |
| Power connector | DC-in jack |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 784742 h |
| Housing material | Metal |
| Rack mounting | No |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Security | |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Password protection | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 128 |
| Multicast support | Yes |
| Certificates | |
| Certification | FCC 15 B CE/EN55032/24 VCCI ACMA CSA KC BSMI |
| Memory | |
| Packet buffer memory | 0.192 MB |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | FCC 15 B CE/EN55032/24 VCCI ACMA CSA KC BSMI |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 15 |
| Total Power over Ethernet (PoE) budget | 180 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 880 g |
| Packaging data | |
| User guide | Yes |
| Cables included | AC |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
