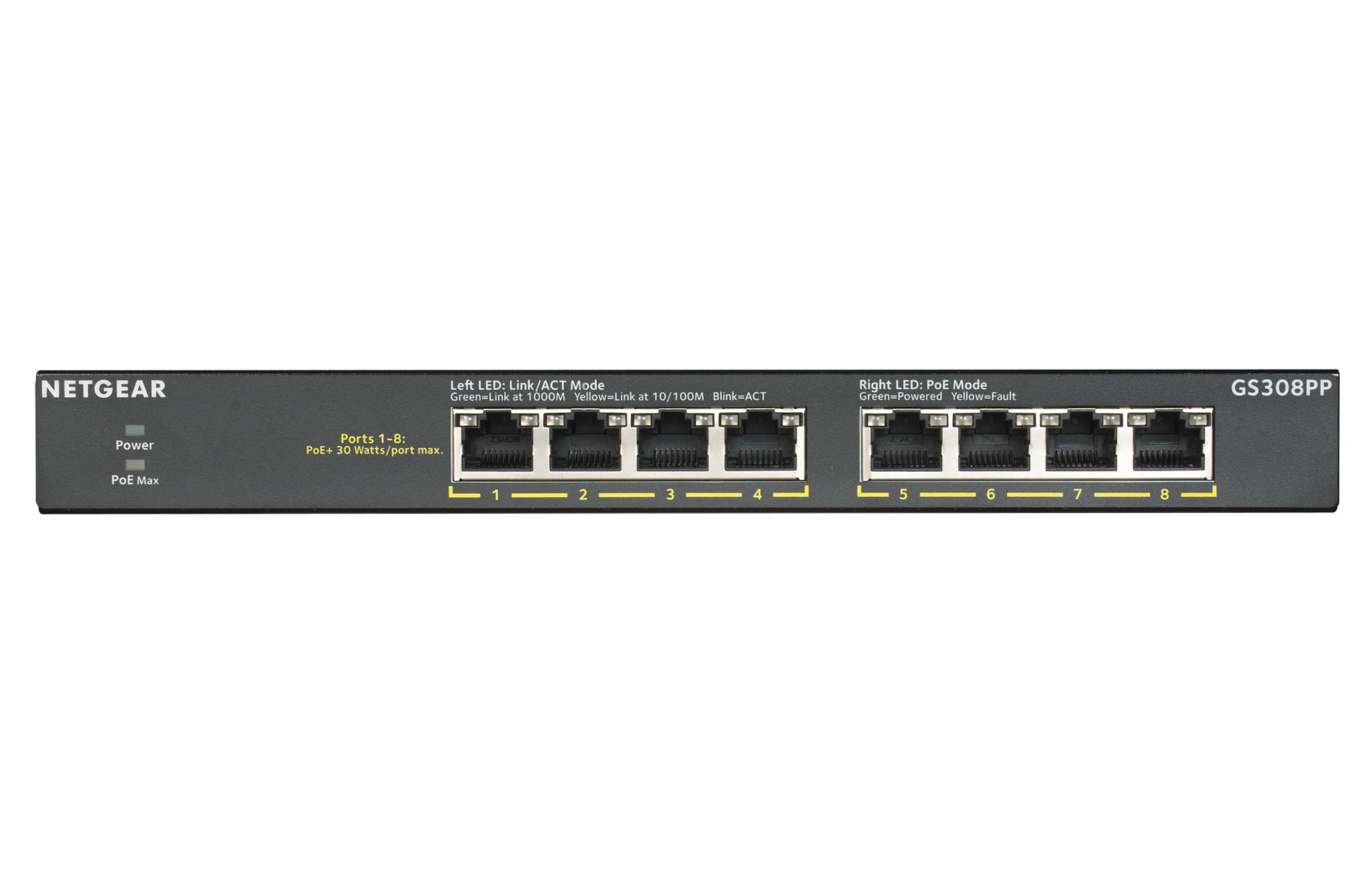

NETGEAR GS308PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8-Port Gigabit Ethernet Unmanaged PoE+ Switch with FlexPoE

SKU
GS308PP-100EUS
Brand
Netgear
Category
Network Switches
EAN
0606449146851
Weight
600 kg
NETGEAR GS308PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Overview

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level

Specifications

Performance
Packet buffer memory0.192 MB
Auto-negotiationYes
Mean time between failures (MTBF)2752476 h
Harmonized System (HS) code85176990
Power
Power connectorDC-in jack
Power consumption (max)87.9 W
Input current1.66 A
DC input voltage54 V
Technical details
Product colourBlack
Mean time between failures (MTBF)2752476 h
Housing materialMetal
Rack mountingYes
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power connectorDC-in jack
Network
Auto-sensingYes
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Data transmission
Packet forwarding rate (1 Gbps)1448000 pps
Jumbo frames9216
Latency (1 Gbps)3 µs
Packet buffer memory0.192 MB
MAC address table4000 entries
Switching capacity16 Gbit/s
Jumbo frames supportYes
Certificates
CertificationCE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC
Memory
Packet buffer memory0.192 MB
Design
Wall mountableYes
Product colourBlack
LED indicatorsActivity, Link, PoE, Power, Speed
Housing materialMetal
CertificationCE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC
Rack mountingYes
Indication
LED indicatorsActivity, Link, PoE, Power, Speed
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget130 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Heat dissipation300.6 BTU/h
Weight & dimensions
Width236 mm
Depth102 mm
Height27 mm
Weight600 g
Logistics data
Harmonized System (HS) code85176990
