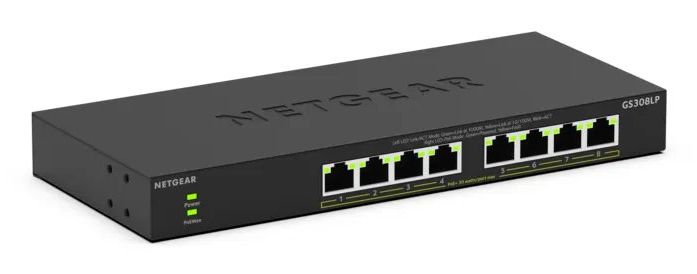

NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black

8-port Gigabit Ethernet PoE+ unmanaged switch, 60 W PoE budget, Metal

SKU
GS308LP-100EUS
Brand
Netgear
Category
Network Switches
EAN
0606449174731
Weight
600 kg
NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black

Overview

PLUG-AND-PLAY
Simple set up with no software to install or configuration needed

NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed

FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

FLEX PoE
Easily increase you power budget on this switch to meet your changing power needs.

Specifications

Management features
Traffic classificationYes
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supportedCat5e
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Auto-sensingYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Networking standardsIEEE 802.3az, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Full duplexYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Half duplexYes
Data transmission
Packet forwarding rate (1 Gbps)1488000 pps
Jumbo frames9216
Latency (1 Gbps)2.6 µs
Packet buffer memory0.192 MB
MAC address table4000 entries
Switching capacity16 Gbit/s
Number of queues8
Jumbo frames supportYes
Forwarding rate1.488 Mpps
Throughput16 Gbit/s
Security
Queue scheduling algorithmsWeighted Round Robin (WRR)
MAC address entriesDynamic MAC address entries
Design
Wall mountableYes
Form factorDesktop
Product colourBlack
StackableNo
LED indicatorsYes
Housing materialMetal
Rack mountingYes
Performance
Mean time between failures (MTBF)2752476 h
FanlessYes
Packet buffer memory0.192 MB
StackableNo
Auto-negotiationYes
Power
Power consumption (max)67.5 W
Power supply includedYes
Number of power supply units1
Input voltage54 V
Input current1.25 A
DC input voltage54 V
Power sourceDC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget60 W
Power over Ethernet (PoE) ports quantity8
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedPoE+
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Heat dissipation230.85 BTU/h
Weight & dimensions
Width236 mm
Depth102 mm
Height27 mm
Weight600 g
Technical details
Form factorDesktop
Product colourBlack
StackableNo
Mean time between failures (MTBF)2752476 h
Housing materialMetal
Rack mountingYes
Compliance certificatesCE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, VCCI, KC, CB, Low Voltage Directive (LVD)
Memory
Packet buffer memory0.192 MB
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, VCCI, KC, CB, Low Voltage Directive (LVD)
Indication
LED indicatorsYes
Other features
Input voltage54 V
Ethernet LAN data rates10,100,1000 Mbit/s
