In stock (71)
Netgear
NETGEAR 28-Port PoE Gigabit/10G Stackable Smart Switch (GS728TXP)
SKU GS728TXP-300EUS
24 GE ports, 4 10G ports, PoE+, 440 x 257 x 43.2 mm, 3.8 kg
Request a price
Quoted to you, usually same day
Overview
5-Port Switch Gigabit Unmanaged PoE switch with 4 PoE+ ports and 63W power budget to power Wireless AP, IP Cameras, IP Phones and more.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Rack mounting | No |
| Performance | |
| Mean time between failures (MTBF) | 4113947 h |
| Packet buffer memory | 0.128 MB |
| Stackable | No |
| Power | |
| Power consumption (max) | 66.78 W |
| Input current | 1.25 A |
| DC input voltage | 54 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 63 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Warranty period | 3 year(s) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 228.38 BTU/h |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 400 g |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Mean time between failures (MTBF) | 4113947 h |
| Rack mounting | No |
| Shipping (inner) case width | 45.1 cm |
| Shipping (inner) case net weight | 14 kg |
| Shipping (inner) case length | 25.5 cm |
| Shipping (inner) case height | 37.5 cm |
| Products per shipping (inner) case | 10 pc(s) |
| Warranty period | 3 year(s) |
| Memory | |
| Packet buffer memory | 0.128 MB |
| Indication | |
| LED indicators | Yes |
Why buy from us

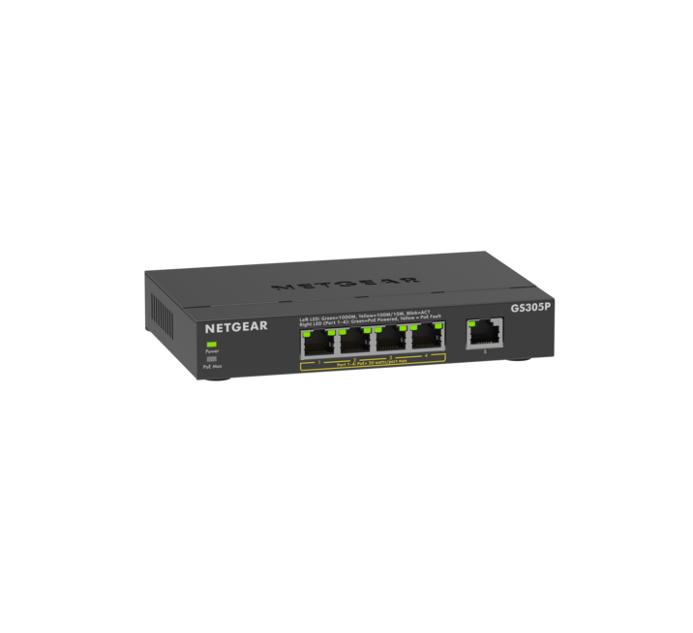

Buying the NETGEAR GS305Pv3 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black from ServersGB
