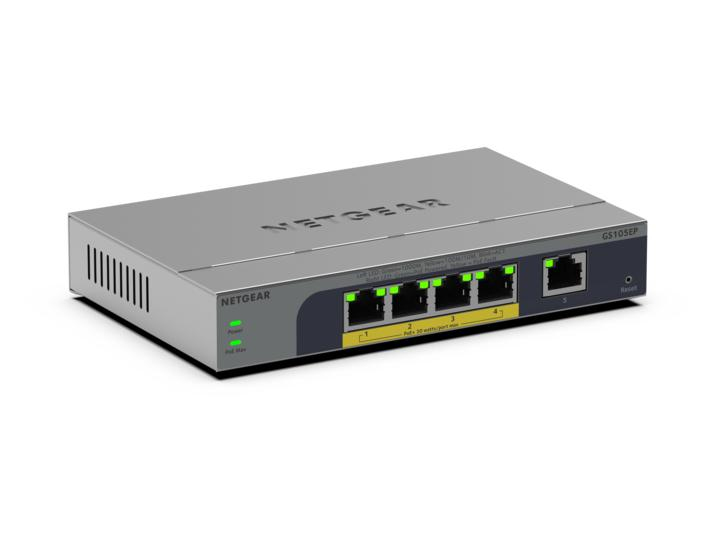

NETGEAR GS105EP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

5-Port, Gigabit, 63 W, 2K, 1.5 MB, 0-40°C, Grey, 158 x 101 x 27 mm, 0.39 kg

SKU
GS105EP-100EUS
Brand
Netgear
Category
Network Switches
EAN
0606449174670
Weight
390 kg
NETGEAR GS105EP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Overview

EASY POE CONTROLS

Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices

GIGABIT ETHERNET

5 ports provide gigabit Ethernet connectivity to your devices

VLANS

Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources

FANLESS DESIGN

Silent operation makes this switch perfect for noise-sensitive environments

VERSATILE MOUNTING OPTIONS

Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments

ENERGY EFFICIENT

Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Specifications

Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Multicast supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.1p, IEEE 802.3az
Full duplexYes
Rate limitingYes
Port mirroringYes
Flow control supportYes
Virtual LAN featuresPort-based VLAN
IGMP snoopingYes
Data transmission
Jumbo frames9216
Packet buffer memory1.5 MB
MAC address table2000 entries
Jumbo frames supportYes
Number of multicast groups filtered128
Security
IGMP snoopingYes
Queue scheduling algorithmsStrict Priority Queue (SPQ), Weighted Round Robin (WRR)
Password protectionYes
DHCP featuresDHCP client
Multicast features
Number of multicast groups filtered128
Multicast supportYes
Design
SafetyUL listed (UL 1950)/CUL, CB
Product colourGrey
StackableNo
LED indicatorsActivity, Link, PoE, Power, Speed, System
Housing materialMetal
Performance
Noise level0 dB
Mean time between failures (MTBF)1164104 h
Packet buffer memory1.5 MB
StackableNo
Power
Power consumption (max)74.7 W
Power consumption (typical)4 W
Power sourceAC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity4
Total Power over Ethernet (PoE) budget63 W
Power over Ethernet (PoE)Yes
Other features
Connectivity technologyWired
Power requirements12V, 1.0A
Networking featuresGigabit Ethernet
Connectivity LEDsYes
Electromagnetic emissionsCE mark, FCC 15 B, EN 55022 (CISPR 22) B, VCCI B, C-Tick
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Virtual LAN features
Virtual LAN featuresPort-based VLAN
Weight & dimensions
Width158 mm
Depth101 mm
Height27 mm
Weight390 g
Packaging content
Quick start guideYes
ManualYes
Technical details
Product colourGrey
StackableNo
Noise level0 dB
Mean time between failures (MTBF)1164104 h
Housing materialMetal
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), KC, VCCI
Certificates
SafetyUL listed (UL 1950)/CUL, CB
Electromagnetic emissionsCE mark, FCC 15 B, EN 55022 (CISPR 22) B, VCCI B, C-Tick
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), KC, VCCI
Memory
Packet buffer memory1.5 MB
Indication
LED indicatorsActivity, Link, PoE, Power, Speed, System
Packaging data
Quick start guideYes
ManualYes
